VFD Cable

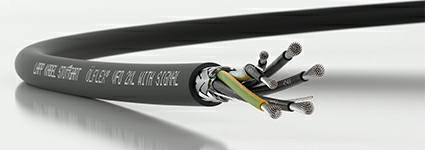

Name: 700716 - LAPP ÖLFLEX® VFD 2XL with Signal - 4 AWG 4 conductors- Black
Brand: LAPP
SKU: OLF700716
Price: 45130 USD
Availability: InStock

VFD, Motor & Drive Cables

From automated robotics to cutting-edge HVAC systems, you’ll find a VFD cable in use. Variable frequency drive cables, otherwise known as VFD cables, need to be as rigorous and resilient as possible in order to meet the demands and designs of the latest and greatest machines of today.

Applications for this type of cable demand a product that is both oil and chemical resistant, highly flexible, and can withstand extreme operating temperatures while providing reliable power and control capabilities. Lapp Tannehill carries a broad offering of flexible VFD cables for your application.

VFD Cable

Industrial growth has increased the use of machinery powered by variable frequency drives (VFDs) for efficient operation. VFD-specific cables address challenges like electromagnetic interference and voltage spikes, ensuring reliable performance, improved efficiency, and longer equipment lifespan.

Selecting the Right VFD Cable

Several key criteria must be considered when selecting VFD cable such as:

Voltage level: VFD cable is typically rated up to 600V, 1000V, and 2000V. Higher voltage levels require thicker, more robust insulation to resist high voltage spikes.

Cable run length: VFD cable is offered in different configurations for longer cable runs via specific design and construction methods.

Shielding: Different shielding types mitigate potential electromagnetic interference with nearby low-voltage or communications cabling. This reduces EMI/RFI noise.

Flexibility: Flexibility ensures easy installation in tight spaces, supports frequent movement, and reduces cable stress, enhancing durability and performance.

Common Mode Noise: XLPE insulation can reduce common mode current (CMC) which can damage the motor (causing bearing fluting damage).

The following table provides a comparison and overview of a “good, better, best” selection of VFD cable to address most drive and motor applications covering cable for fractional/low HP motors (14 AWG cable) up to the large HP applications (1AWG to 500kcmil cable).

	HIGH-PERFORMANCE VFD CABLES
	ÖLFLEX® VFD Slim	ÖLFLEX® VFD 1XL	ÖLFLEX® VFD 2XL
Duty & Performance Rating	Light duty, Good Performance	Medium duty, Better Performance; Reduced diameter for ease of installation; Continuous flex (w/o Signal Pair)	Heavy duty, Excellent Performance
Cable Installation Distance	*<50 ft* (<15 meters)	*50 to 300 ft* (15 to 91 meters)	*Up to 300ft and above* (91 meters +)
Nominal Voltage	Suitable for *1000V* applications	Suitable for *1000V* applications	Suitable for *2000V* applications
Electrical Characteristics	*Good* capacitance and impedance to withstand electrical irregularities	*Improved* dielectric characteristics	*Excellent* electrical properties with a Low capacitance design
Insulation & Jacket	Semiconductive “Surge Guard” insulation and PVC/NYLON jacket	Thin-walled XLPE (plus) insulation and TPE jacket	RHW-2 XLPE (plus) insulation and TPE jacket
Cable Configurations		Optional available control signal pair	Standard & symmetrical grounds designs; optional available control signal pair
Shielding	Shielding triple layer foil tape + tinned copper braid	Shielding triple layer foil tape + tinned copper braid	Shielding triple layer foil tape + tinned copper braid

	HIGH-PERFORMANCE VFD CABLES
	ÖLFLEX® VFD Slim	ÖLFLEX® VFD 1XL	ÖLFLEX® VFD 2XL
Duty & Performance Rating	Light duty, Good Performance	Medium duty, Better Performance; Reduced diameter for ease of installation; Continuous flex (w/o Signal Pair)	Heavy duty, Excellent Performance
Cable Installation Distance	*<50 ft* (<15 meters)	*50 to 300 ft* (15 to 91 meters)	*Up to 300ft and above* (91 meters +)
Nominal Voltage	Suitable for *1000V* applications	Suitable for *1000V* applications	Suitable for *2000V* applications
Electrical Characteristics	*Good* capacitance and impedance to withstand electrical irregularities	*Improved* dielectric characteristics	*Excellent* electrical properties with a Low capacitance design
Insulation & Jacket	Semiconductive “Surge Guard” insulation and PVC/NYLON jacket	Thin-walled XLPE (plus) insulation and TPE jacket	RHW-2 XLPE (plus) insulation and TPE jacket
Cable Configurations		Optional available control signal pair	Standard & symmetrical grounds designs; optional available control signal pair
Shielding	Shielding triple layer foil tape + tinned copper braid	Shielding triple layer foil tape + tinned copper braid	Shielding triple layer foil tape + tinned copper braid

LAPP Tannehill VFD Cable: In-Stock and Ready-to-Ship Today

LAPP Tannehill is a leading national distributor for VFD cable specializing in fast shipment, high service level, and flexibility to meet the exact needs of every manufacturing company.

Fast Delivery: Same-day shipping from our warehouses in Houston, Las Vegas, Minneapolis, and Indianapolis
Highly customizable services including cutting and tailored cable put-ups

Contact LAPP Tannehill today for all of VFD cabling requirements. Browse our product selection below, request a quote, contact us for additional assistance, or call us at 800.633.6339.
