UNITRONIC® Data Comm Cables

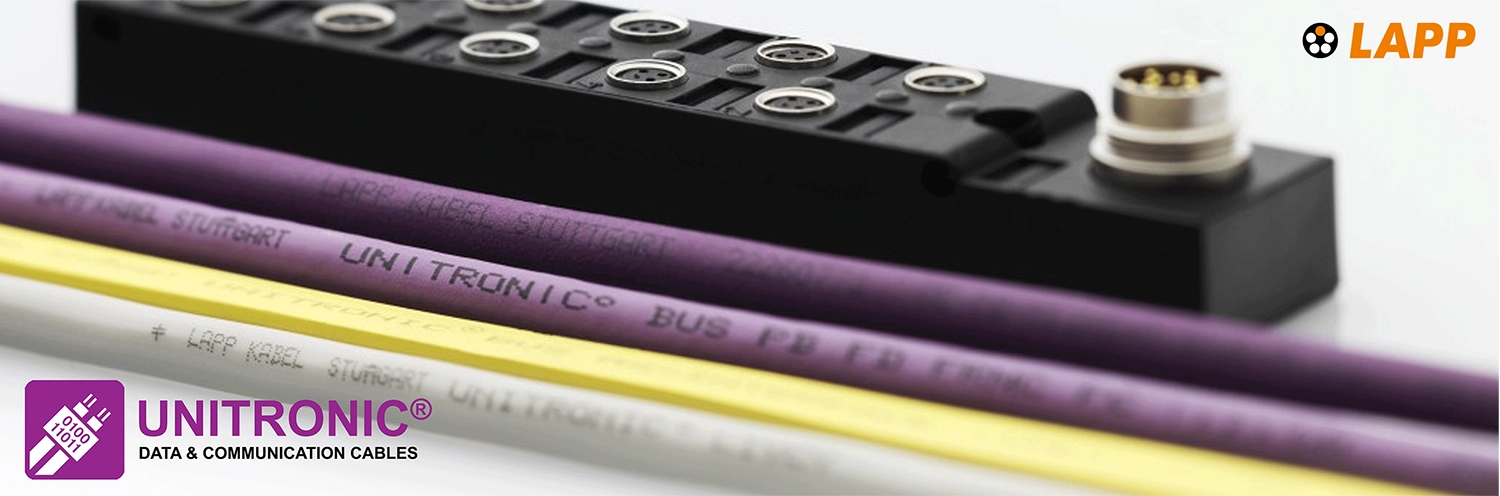

UNITRONIC® Data and Communication Cables

Innovative Data Cables for Electronic Applications

Look to LAPP’s UNITRONIC® data and communication cables for reliable, fast, and innovative solutions for transferring data. With data cables for almost all electronic applications, from small diameter cables in coffee machines to those acting as the backbone of your automation and control processes, UNITRONIC® data cables are sure to meet your needs.

PLEASE NOTE: LAPP PRODUCTS ARE NOT SUITABLE FOR THE INSIDE OF AIRPLANES AND HELICOPTERS, INCLUDING DRONES OR OTHER DIRECT AIR AND SPACE TRAVEL APPLICATIONS.

Try our Cross-Reference & Product Selection Tool

Properties

  • Robust and durable
  • Indoor and outdoor applications
  • Designed to perform in harsh chemical and mechanical environments
  • Suitable for a wide range of applications (e.g. cable tracks)
  • Available in Halogen-free versions
  • International approvals

Fields of Application

  • Machinery
  • Field bus systems
  • Industrial automation
  • Robotics
  • Measurement and control technology

Browse the UNITRONIC® cables that we have online or download a pdf of the complete UNITRONIC® catalog.

Request a Sample

Reach out to our product representatives at the button below if you are interested in trying a sample of our product. Our team will contact you to go over your application details to ensure you are receiving the best product for your needs.

Request a Sample

UNITRONIC® BUS CAN, PROFIBUS, DeviceNet, & more

UNITRONIC Data & Communication Cables

UNITRONIC® Data and Communication Cables

Innovative Data Cables for Electronic Applications

Look to LAPP’s UNITRONIC® data and communication cables for reliable, fast, and innovative solutions for transferring data. With data cables for almost all electronic applications, from small diameter cables in coffee machines to those acting as the backbone of your automation and control processes, UNITRONIC® data cables are sure to meet your needs.

PLEASE NOTE: LAPP PRODUCTS ARE NOT SUITABLE FOR THE INSIDE OF AIRPLANES AND HELICOPTERS, INCLUDING DRONES OR OTHER DIRECT AIR AND SPACE TRAVEL APPLICATIONS.

Properties:

  • Robust and durable
  • Indoor and outdoor applications
  • Designed to perform in harsh chemical and mechanical environments
  • Suitable for a wide range of applications (e.g. cable tracks)
  • Available in Halogen-free versions
  • International approvals

Fields of application:

  • Machinery
  • Field bus systems
  • Industrial automation
  • Robotics
  • Measurement and control technology

Browse the UNITRONIC® cables that we have online or download a pdf of the complete UNITRONIC® catalog.

UNITRONIC® BUS CAN, PROFIBUS, DeviceNet, & more

5 Items

Set Ascending Direction
  1. 7038864 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/3 Conductor - Black
    7038864 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/3 Conductor - Black

    Part #: OLF7038864
    Mfg #: 7038864
    Manufacturer: LAPP

    Multi-conductor continuous flex communication cable with PUR jacket; 300V

    TYPE: Bus

    SERIES: UNITRONIC® SENSOR FD

    CONDUCTOR MATERIAL: Bare Copper

    CONDUCTOR STRANDING: Stranded

    SHIELDING: Unshielded

    JACKET MATERIAL: Polyurethane (PUR)

    NOMINAL OD (IN): 0.181

    NOMINAL OD (MM): 4.6

    VOLTAGE: 300V

    STANDARDS/APPROVALS: UL Approved, CSA Approved, CE Approved

    Learn More
    $1,108.83 / 1,000 FT$1.11 / 1 FT

    Contact 800-633-6339 for Availability


    Add to Compare
  2. 7038865 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/4 Conductor - Black
    7038865 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/4 Conductor - Black

    Part #: OLF7038865
    Mfg #: 7038865
    Manufacturer: LAPP

    Multi-conductor continuous flex communication cable with PUR jacket; 300V

    TYPE: Bus

    SERIES: UNITRONIC® SENSOR FD

    CONDUCTOR MATERIAL: Bare Copper

    CONDUCTOR STRANDING: Stranded

    SHIELDING: Unshielded

    JACKET MATERIAL: Polyurethane (PUR)

    NOMINAL OD (IN): 0.185

    NOMINAL OD (MM): 4.7

    VOLTAGE: 300V

    STANDARDS/APPROVALS: UL Approved, CSA Approved, CE Approved

    Learn More
    $1,175.43 / 1,000 FT$1.18 / 1 FT

    Contact 800-633-6339 for Availability


    Add to Compare
  3. 7038885 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/3 Conductor - Black - Shielded
    7038885 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/3 Conductor - Black - Shielded

    Part #: OLF7038885
    Mfg #: 7038885
    Manufacturer: LAPP

    Multi-conductor continuous flex communication cable with PUR jacket; 300V

    TYPE: Bus

    SERIES: UNITRONIC® SENSOR FD

    CONDUCTOR MATERIAL: Bare Copper

    CONDUCTOR STRANDING: Stranded

    SHIELDING: Braid

    JACKET MATERIAL: Polyurethane (PUR)

    NOMINAL OD (IN): 0.181

    NOMINAL OD (MM): 4.6

    VOLTAGE: 300V

    STANDARDS/APPROVALS: UL Approved, CSA Approved, CE Approved

    Learn More
    $1,766.70 / 1,000 FT$1.77 / 1 FT

    Contact 800-633-6339 for Availability


    Add to Compare
  4. 7038886 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/4 Conductor - Black - Shielded
    7038886 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/4 Conductor - Black - Shielded

    Part #: OLF7038886
    Mfg #: 7038886
    Manufacturer: LAPP

    Multi-conductor continuous flex communication cable with PUR jacket; 300V

    TYPE: Bus

    SERIES: UNITRONIC® SENSOR FD

    CONDUCTOR MATERIAL: Bare Copper

    CONDUCTOR STRANDING: Stranded

    SHIELDING: Braid

    JACKET MATERIAL: Polyurethane (PUR)

    NOMINAL OD (IN): 0.185

    NOMINAL OD (MM): 4.7

    VOLTAGE: 300V

    STANDARDS/APPROVALS: UL Approved, CSA Approved, CE Approved

    Learn More
    $1,777.33 / 1,000 FT$1.78 / 1 FT

    Contact 800-633-6339 for Availability


    Add to Compare
  5. 7038887 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/5 Conductor - Black - Shielded
    7038887 - LAPP UNITRONIC® SENSOR FD Bus Cable - 22 AWG/5 Conductor - Black - Shielded

    Part #: OLF7038887
    Mfg #: 7038887
    Manufacturer: LAPP

    Multi-conductor continuous flex communication cable with PUR jacket; 300V

    TYPE: Bus

    SERIES: UNITRONIC® SENSOR FD

    CONDUCTOR MATERIAL: Bare Copper

    CONDUCTOR STRANDING: Stranded

    SHIELDING: Braid

    JACKET MATERIAL: Polyurethane (PUR)

    NOMINAL OD (IN): 0.177

    NOMINAL OD (MM): 4.5

    VOLTAGE: 300V

    STANDARDS/APPROVALS: UL Approved, CSA Approved, CE Approved

    Learn More
    $2,044.29 / 1,000 FT$2.04 / 1 FT

    Contact 800-633-6339 for Availability


    Add to Compare
