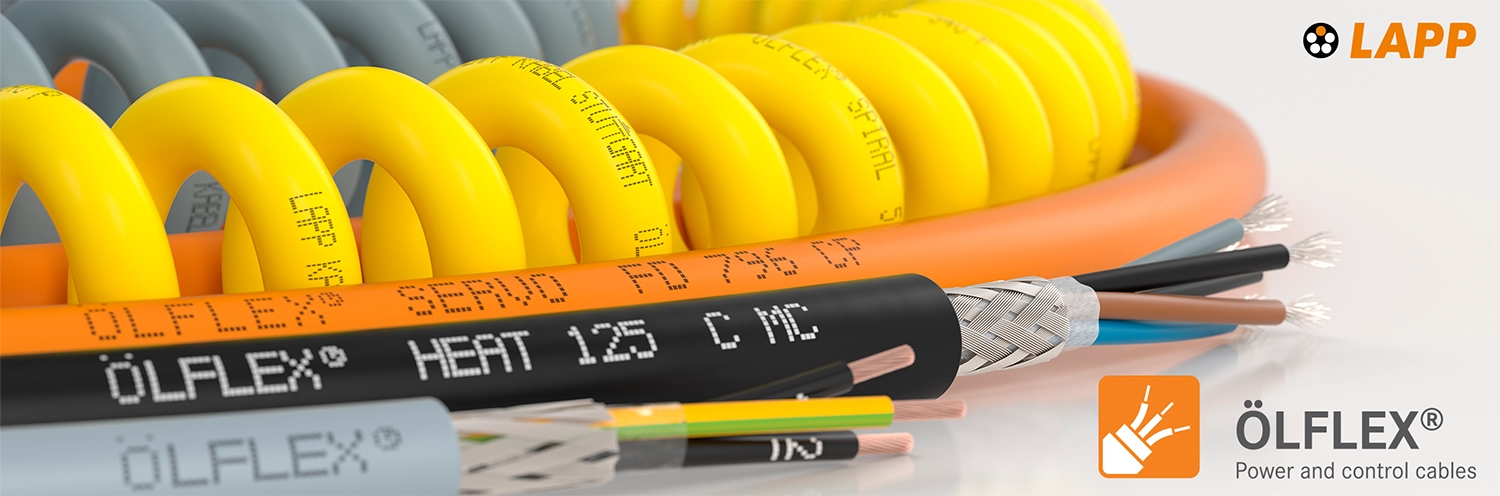

ÖLFLEX® Flexible Power & Control Cables
ÖLFLEX® Flexible Power & Control Cables
Introduced in 1959, ÖLFLEX® was the first control cable designed with color-coded wire. Today, LAPP’s ÖLFLEX® cables are some of the most widely used in the world. Our flexible and oil-resistant cables satisfy the highest demands and can withstand even the very toughest conditions. Turn to Lapp Tannehill for all of your ÖLFLEX® needs.
Request a Sample
If you'd like to try a sample ÖLFLEX®, complete the form found at the button below. A representative will reach out to you with some questions on your application before sending you the best product for your needs.
PLEASE NOTE: LAPP PRODUCTS ARE NOT SUITABLE FOR THE INSIDE OF AIRPLANES AND HELICOPTERS, INCLUDING DRONES OR OTHER DIRECT AIR AND SPACE TRAVEL APPLICATIONS.
Properties
- Flexible, almost entirely oil-resistant and universally applicable
- Fulfills the most demanding requirements for electrical and mechanical properties
- Comprehensive range for all environmental conditions, including wet/dry, EMC, indoor/outdoor, extreme temperature ranges, etc.
- Suitable for fixed connection or energy supply chains
- Available in Halogen-free options and with international licenses
Fields of Application
- Mechanical, tool, system, and apparatus engineering
- Measurement, control, heating, and climate technology
- Wind-powered and photovoltaic plants
- Public buildings, airports, and stations
- Medical technology
- Chemical industry, composting plants, and sewage works
- Food and drink industry
- Construction machinery, automotive, and agricultural equipment
- Robotics
- Stage engineering
- Mobile electrical equipment (electrical instruments, power tools, household goods)
- Many more
Browse the ÖLFLEX® cables below or download a pdf of the complete ÖLFLEX® catalog.
ÖLFLEX® Flexible Power & Control Cables
Introduced in 1959, ÖLFLEX® was the first control cable designed with color-coded wire. Today, LAPP’s ÖLFLEX® cables are some of the most widely used in the world. Our flexible and oil-resistant cables satisfy the highest demands and can withstand even the very toughest conditions. Turn to Lapp Tannehill for all of your ÖLFLEX® needs. If you'd like to speak with one of our representatives for assistance, please contact us below.
PLEASE NOTE: LAPP PRODUCTS ARE NOT SUITABLE FOR THE INSIDE OF AIRPLANES AND HELICOPTERS, INCLUDING DRONES OR OTHER DIRECT AIR AND SPACE TRAVEL APPLICATIONS.
Properties
- Flexible, almost entirely oil-resistant and universally applicable
- Fulfills the most demanding requirements for electrical and mechanical properties
- Comprehensive range for all environmental conditions, including wet/dry, EMC, indoor/outdoor, extreme temperature ranges, etc.
- Suitable for fixed connection or energy supply chains
- Available in Halogen-free options and with international licenses
Fields of Application
- Mechanical, tool, system, and apparatus engineering
- Measurement, control, heating, and climate technology
- Wind-powered and photovoltaic plants
- Public buildings, airports, and stations
- Medical technology
- Chemical industry, composting plants, and sewage works
- Food and drink industry
- Construction machinery, automotive, and agricultural equipment
- Robotics
- Stage engineering
- Mobile electrical equipment (electrical instruments, power tools, household goods)
- Many more
Browse the ÖLFLEX® cables below or download a pdf of the complete ÖLFLEX® catalog.
-
1123410 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 18 AWG 2 Conductors - BlackPart #: OLF1123410
Mfg #: 1123410
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.339
NOMINAL OD (MM): 8.6
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
- 1123411 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 18 AWG 3 Conductors - Black
Part #: OLF1123411
Mfg #: 1123411
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.355
NOMINAL OD (MM): 9
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
- 1123412 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 18 AWG 4 Conductors - Black
Part #: OLF1123412
Mfg #: 1123412
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.378
NOMINAL OD (MM): 9.6
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
- 1123413 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 18 AWG 5 Conductors - Black
Part #: OLF1123413
Mfg #: 1123413
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.41
NOMINAL OD (MM): 10.4
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
- 1123414 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 18 AWG 7 Conductors - Black
Part #: OLF1123414
Mfg #: 1123414
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.437
NOMINAL OD (MM): 11.1
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
- 1123415 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 18 AWG 12 Conductors - Black
Part #: OLF1123415
Mfg #: 1123415
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.552
NOMINAL OD (MM): 14
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
- 1123416 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 18 AWG 18 Conductors - Black
Part #: OLF1123416
Mfg #: 1123416
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.634
NOMINAL OD (MM): 16.1
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
- 1123418 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 16 AWG 2 Conductors - Black
Part #: OLF1123418
Mfg #: 1123418
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.378
NOMINAL OD (MM): 9.6
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
- 1123419 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 16 AWG 3 Conductors - Black
Part #: OLF1123419
Mfg #: 1123419
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.398
NOMINAL OD (MM): 10.1
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
- 1123420 - LAPP ÖLFLEX® CLASSIC 130 H BK Flexible Power and Control Cable - Unshielded - 16 AWG 4 Conductors - Black
Part #: OLF1123420
Mfg #: 1123420
Manufacturer: LAPPLow smoke, zero halogen control cable
SERIES: ÖLFLEX® CLASSIC 130 H BK
CONDUCTOR MATERIAL: Bare copper
CONDUCTOR STRANDING: Stranded
SHIELDING: Unshielded
JACKET MATERIAL: Halogen-free compound
NOMINAL OD (IN): 0.426
NOMINAL OD (MM): 10.8
VOLTAGE: 1000V
STANDARDS/APPROVALS: UL Approved, CE Approved
