SKINTOP® SL, SLN & SLM Cable Glands
SKINTOP® SL, SLN & SLM Cable Glands

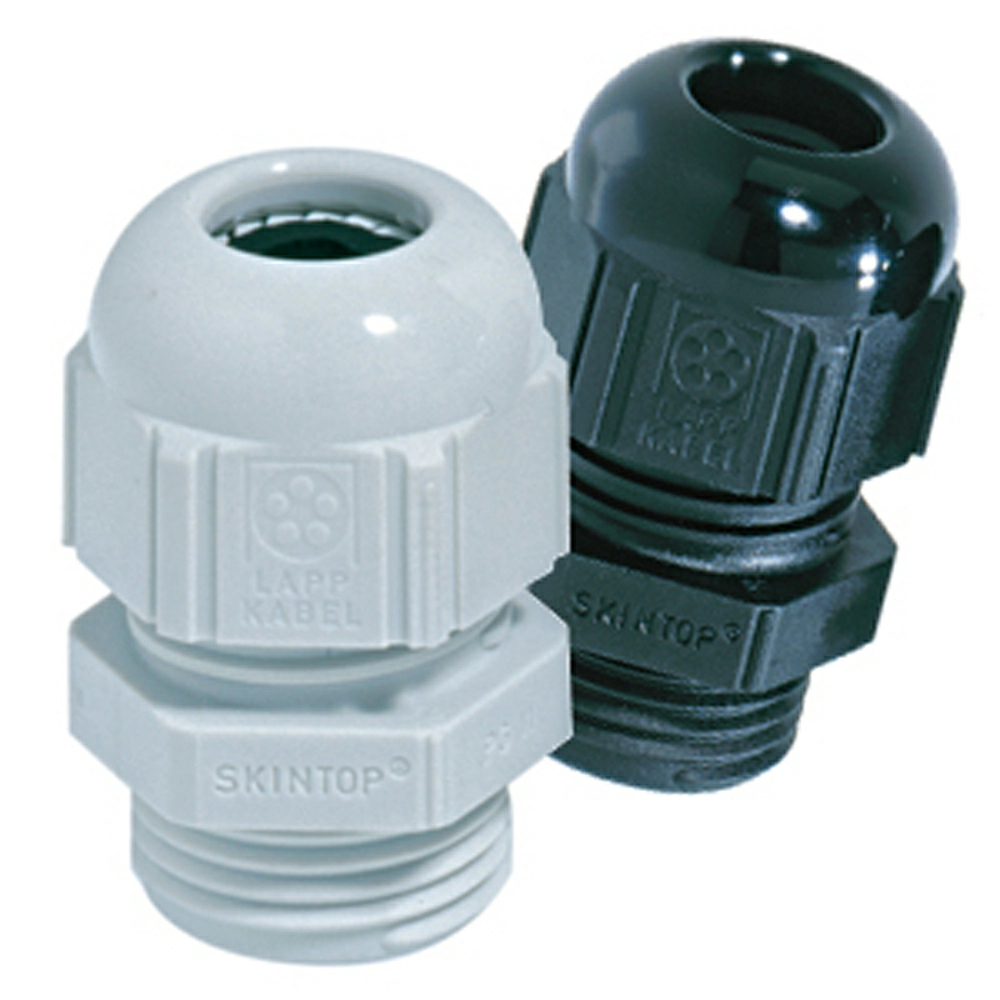

SKINTOP® SL/SLR, SLN/SLRN, and SLM/SLRM are durable, liquid-tight, easy-to-assemble strain relief cable glands that are universally suited for all types of machinery and equipment, including automation, motion control, process control, and robotics.
These cable glands/cord grips are designed with a polyamide body, and offered in a PG thread (SL/SLR), NPT thread (SLN/SLRN), or metric thread (SLM/SLRM). The SKINTOP® SLR, SLRN, and SLRM cable glands include a generous high-quality neoprene bushing that provides a liquid-tight and dust-proof hermetic seal.
Available in black UV-resistant or gray colors, the heavy-duty LAPP SKINTOP® cord grip design provides great pullout strength, making it a very reliable strain relief. The integrated locking mechanism includes an internal ratchet inside the sealing portion of the cord grip, providing a self-locking and vibration-proof element that prevents the cap from loosening even when subjected to severe vibration. The multi-trapezoidal thread requires just one twist to tighten the dome cap, automatically adjusting to the size of the cable and providing optimum strain relief and a liquid-tight seal.
Try a SKINTOP® Cord Grip
When you request a SKINTOP® cord grip sample, a LAPP Tannehill product expert will reach out to discuss the specific details of your application to ensure you are receiving the best SKINTOP® solution. Complete the form found at the button below to start the conversation.
SKINTOP® SL, SLN & SLM Cable Glands
SKINTOP® SL/SLR, SLN/SLRN, and SLM/SLRM are durable, liquid-tight, easy-to-assemble strain relief cable glands that are universally suited for all types of machinery and equipment, including automation, motion control, process control, and robotics.
These cable glands/cord grips are designed with a polyamide body, and offered in a PG thread (SL/SLR), NPT thread (SLN/SLRN), or metric thread (SLM/SLRM). The SKINTOP® SLR, SLRN, and SLRM cable glands include a generous high-quality neoprene bushing that provides a liquid-tight and dust-proof hermetic seal.
Available in black UV resistant or gray colors, the heavy-duty LAPP SKINTOP® cord grip design provides great pullout strength, making it a very reliable strain relief. The integrated locking mechanism includes an internal ratchet inside the sealing portion of the cord grip, providing a self-locking and vibration-proof element that prevents the cap from loosening even when subjected to severe vibration. The multi-trapezoidal thread requires just one twist to tighten the dome cap, automatically adjusting to the size of the cable and providing optimum strain relief and a liquid-tight seal.
-
SKINTOP PG-42 1.378-1.496 ID GRAY (WITH LOCKNUTS)Part #: OLFS1142
Mfg #: S1142
Manufacturer: LAPP - S2112 - LAPP SKINTOP® SLN Strain Relief Cable Gland - 1/2 NPT - Black
Part #: OLFSLN-1/2-0
Mfg #: S2112
Manufacturer: LAPPStrain relief with NPT thread
SERIES: SKINTOP® SLN
THREAD TYPE: NPT
THREAD SIZE: 1/2
THREAD LENGTH (IN): 0.591
BODY MATERIAL: Polyamide
COLOR: Black
LOCKNUT: Not Included
IP RATING: IP68
STANDARDS/APPROVALS: UL Approved
- S2101 - LAPP SKINTOP® SLN Strain Relief Cable Gland - 1 NPT - Black
Part #: OLFSLN-1-0
Mfg #: S2101
Manufacturer: LAPPStrain relief with NPT thread
SERIES: SKINTOP® SLN
THREAD TYPE: NPT
THREAD SIZE: 1
THREAD LENGTH (IN): 0.591
BODY MATERIAL: Polyamide
COLOR: Black
LOCKNUT: Not Included
IP RATING: IP68
STANDARDS/APPROVALS: UL Approved
- S1138 - LAPP SKINTOP® SLN Strain Relief Cable Gland - 3/8 NPT - Gray
Part #: OLFSLN-3/8-8
Mfg #: S1138
Manufacturer: LAPPStrain relief with NPT thread
SERIES: SKINTOP® SLN
THREAD TYPE: NPT
THREAD SIZE: 3/8
THREAD LENGTH (IN): 0.591
BODY MATERIAL: Polyamide
COLOR: Gray
LOCKNUT: Not Included
IP RATING: IP68
STANDARDS/APPROVALS: UL Approved
- S1112 - LAPP SKINTOP® SLN Strain Relief Cable Gland - 1/2 NPT - Gray
Part #: OLFSLN-1/2-8
Mfg #: S1112
Manufacturer: LAPPStrain relief with NPT thread
SERIES: SKINTOP® SLN
THREAD TYPE: NPT
THREAD SIZE: 1/2
THREAD LENGTH (IN): 0.591
BODY MATERIAL: Polyamide
COLOR: Gray
LOCKNUT: Not Included
IP RATING: IP68
STANDARDS/APPROVALS: UL Approved
- S1101 - LAPP SKINTOP® SLN Strain Relief Cable Gland - 1 NPT - Gray
Part #: OLFSLN-1-8
Mfg #: S1101
Manufacturer: LAPPStrain relief with NPT thread
SERIES: SKINTOP® SLN
THREAD TYPE: NPT
THREAD SIZE: 1
THREAD LENGTH (IN): 0.591
BODY MATERIAL: Polyamide
COLOR: Gray
LOCKNUT: Not Included
IP RATING: IP68
STANDARDS/APPROVALS: UL Approved
- S2238 - LAPP SKINTOP® SLRN Strain Relief Cable Gland - 3/8 NPT - Black
Part #: OLFSLRN-3/8-0
Mfg #: S2238
Manufacturer: LAPPStrain relief with NPT thread
SERIES: SKINTOP® SLRN
THREAD TYPE: NPT
THREAD SIZE: 3/8
THREAD LENGTH (IN): 0.591
BODY MATERIAL: Polyamide
COLOR: Black
LOCKNUT: Not Included
IP RATING: IP68
STANDARDS/APPROVALS: UL Approved
- S2212 - LAPP SKINTOP® SLRN Strain Relief Cable Gland - 1/2 NPT - Black
Part #: OLFSLRN-1/2-0
Mfg #: S2212
Manufacturer: LAPPStrain relief with NPT thread
SERIES: SKINTOP® SLRN
THREAD TYPE: NPT
THREAD SIZE: 1/2
THREAD LENGTH (IN): 0.591
BODY MATERIAL: Polyamide
COLOR: Black
LOCKNUT: Not Included
IP RATING: IP68
STANDARDS/APPROVALS: UL Approved
- S1238 - LAPP SKINTOP® SLRN Strain Relief Cable Gland - 3/8 NPT - Gray
Part #: OLFSLRN-3/8-8
Mfg #: S1238
Manufacturer: LAPPStrain relief with NPT thread
SERIES: SKINTOP® SLRN
THREAD TYPE: NPT
THREAD SIZE: 3/8
THREAD LENGTH (IN): 0.591
BODY MATERIAL: Polyamide
COLOR: Gray
LOCKNUT: Not Included
IP RATING: IP68
STANDARDS/APPROVALS: UL Approved
- S1212 - LAPP SKINTOP® SLRN Strain Relief Cable Gland - 1/2 NPT - Gray
Part #: OLFSLRN-1/2-8
Mfg #: S1212
Manufacturer: LAPPStrain relief with NPT thread
SERIES: SKINTOP® SLRN
THREAD TYPE: NPT
THREAD SIZE: 1/2
THREAD LENGTH (IN): 0.591
BODY MATERIAL: Polyamide
COLOR: Gray
LOCKNUT: Not Included
IP RATING: IP68
STANDARDS/APPROVALS: UL Approved
