Versafit - 2 in Polyolefin Tubing - Red
Versafit - 2 in Polyolefin Tubing - Red
Part #: RAYVER-2-2
Mfg #: Versafit-2-2
Manufacturer: TE Connectivity
Mfg #: Versafit-2-2
Manufacturer: TE Connectivity
Contact 800-633-6339 for Availability
$2,410.00 / 1,000 FT $2.41 / 1 FT

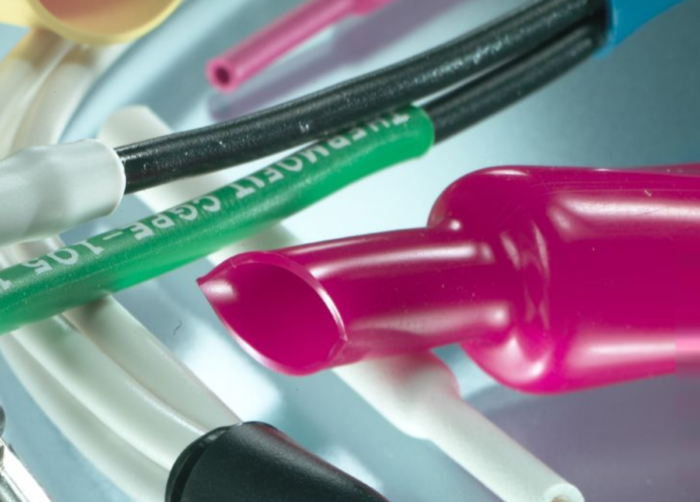

TE Connectivity's Versafit polyolefin shrink tubing is a highly flame-retardant, very flexible solution with a low shrink temperature to reduce installation time and the risk of temperature-sensitive components. This tubing is very flexible and does not easily wrinkle when bent, hot stamps extremely well and has a higher temperature rating, better thermal stability and a higher resistance to physical abuse than noncross-linked materials.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER TE Connectivity | MANUFACTURER PART NUMBER Versafit-2-2 | SERIES Versafit |
| HEAT SHRINK Yes | SHRINK RATIO 2:1 | WALL TYPE Single |
| MATERIAL Polyolefin | SIZE 2 | COLOR Red |
| EXPANDED ID (IN) 2.080 ± 0.040 | EXPANDED ID (MM) 52.83 ± 1.0 | RECOVERED ID MAX (IN) 1 |
| RECOVERED ID MAX (MM) 25.4 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.045 ± 0.007 | NOMINAL RECOVERED WALL THICKNESS (MM) 1.14 ± 0.16 |
| OPERATING TEMPERATURE -67°F to 275°F (-55°C to 135°C) | RECOVERY TEMPERATURE 194°F (90°C) | SHRINK TEMPERATURE 158°F (70°C) |
| FLAMMABILITY Flame-Retardant | FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved CSA Approved |
| MIL-SPEC AS23053/5 Full Spools Only | TRADE OR BRAND NAME RAYCHEM |
