Versafit - 1/4 in Polyolefin Tubing - White
Versafit - 1/4 in Polyolefin Tubing - White
Part #: RAYVER-1/4-9
Mfg #: Versafit-1/4-9
Manufacturer: TE Connectivity
Mfg #: Versafit-1/4-9
Manufacturer: TE Connectivity
Contact 800-633-6339 for Availability
$944.00 / 1,000 FT $0.94 / 1 FT

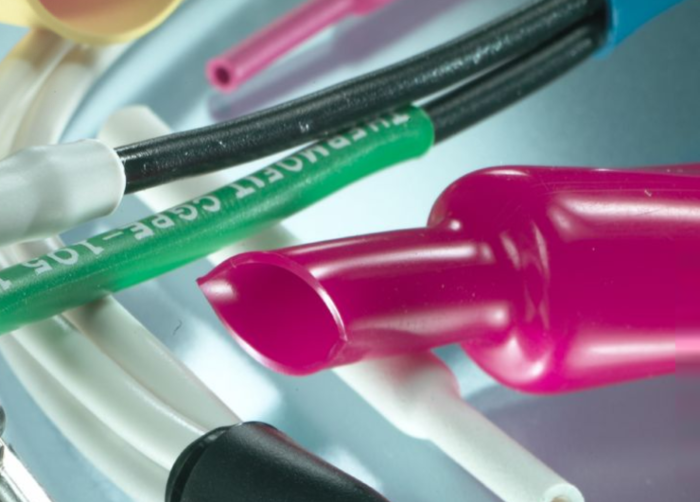

TE Connectivity's Versafit polyolefin shrink tubing is a highly flame-retardant, very flexible solution with a low shrink temperature to reduce installation time and the risk of temperature-sensitive components. This tubing is very flexible and does not easily wrinkle when bent, hot stamps extremely well and has a higher temperature rating, better thermal stability and a higher resistance to physical abuse than noncross-linked materials.
Must purchase in increments of 250.
Specifications
Download Spec Sheet| MANUFACTURER TE Connectivity | MANUFACTURER PART NUMBER Versafit-1/4-9 | SERIES Versafit |
| HEAT SHRINK Yes | SHRINK RATIO 2:1 | WALL TYPE Single |
| MATERIAL Polyolefin | SIZE 1/4 | COLOR White |
| EXPANDED ID (IN) 0.280 ± 0.010 | EXPANDED ID (MM) 7.11 ± 0.3 | RECOVERED ID MAX (IN) 0.125 |
| RECOVERED ID MAX (MM) 3.2 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.025 ± 0.003 | NOMINAL RECOVERED WALL THICKNESS (MM) 0.64 ± 0.08 |
| OPERATING TEMPERATURE -67°F to 275°F (-55°C to 135°C) | RECOVERY TEMPERATURE 194°F (90°C) | SHRINK TEMPERATURE 158°F (70°C) |
| FLAMMABILITY Flame-Retardant | FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved CSA Approved |
| MIL-SPEC AS23053/5 Full Spools Only | TRADE OR BRAND NAME RAYCHEM |
