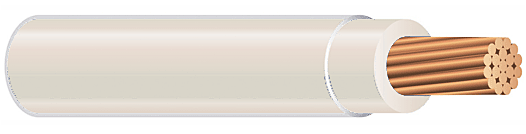

THHN Building Wire - 6 AWG - White - Stranded Conductor
THHN Building Wire - 6 AWG - White - Stranded Conductor
Part #: KLTTHHN6-19-9
Mfg #: 20494101
Manufacturer: Approved Manufacturers
Mfg #: 20494101
Manufacturer: Approved Manufacturers
Contact 800-633-6339 for Availability
$1,583.08 / 1,000 FT $1.58 / 1 FT
THHN wire is primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. 6 gauge, white Stranded Conductor
Must purchase in increments of 500.
Specifications
Download Spec Sheet| MANUFACTURER Approved Manufacturers | MANUFACTURER PART NUMBER 20494101 | TYPE THHN |
| AWG/GAUGE 6 | CONDUCTOR STRANDING Stranded | STRAND COUNT 19 |
| CONDUCTOR MATERIAL Annealed Copper | SHIELDING Unshielded | JACKET MATERIAL Nylon |
| JACKET COLOR White | JACKET THICKNESS (MM) 0.13 | JACKET THICKNESS (IN) 0.005 |
| INSULATION THICKNESS (IN) 0.03 | INSULATION THICKNESS (MM) 0.762 | NOMINAL OD (IN) 0.249 |
| NOMINAL OD (MM) 6.3246 | TEMPERATURE 140°F (60°C) 167°F (75°C) 194°F (90°C) | VOLTAGE 600V |
| AMPACITY @ 60°C 55 | AMPACITY @ 75°C 65 | AMPACITY @ 90C 75 |
| UL STYLE / STANDARD UL 83 UL 1063 | ENVIRONMENTAL Heat moisture oil gasoline and sunlight resistant | WEIGHT LBS/MFT 95 |
