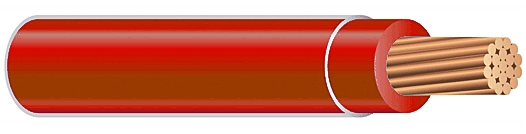

THHN Building Wire - 12 AWG - Red - Stranded Conductor
THHN Building Wire - 12 AWG - Red - Stranded Conductor
Part #: KLTTHHN12-19-2
Manufacturer: Approved Manufacturers
Manufacturer: Approved Manufacturers
In Stock
$720.0000 / 1,000 FT
THHN wire is primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. 12 gauge, red Stranded Conductor
Available to buy in increments of 2500.
Specifications
Download Spec Sheet| MANUFACTURER Approved Manufacturers | AVAILABILITY In Stock | TYPE THHN |
| AWG/GAUGE 12 | CONDUCTOR STRANDING Stranded | STRAND COUNT 19 |
| CONDUCTOR MATERIAL Annealed copper | SHIELDING Unshielded | JACKET MATERIAL Nylon |
| JACKET COLOR Red | JACKET THICKNESS (MM) 0.10 | JACKET THICKNESS (IN) 0.004 |
| INSULATION THICKNESS (IN) 0.015 | INSULATION THICKNESS (MM) 0.381 | NOMINAL OD (IN) 0.128 |
| NOMINAL OD (MM) 3.2512 | TEMPERATURE 140°F (60°C) 167°F (75°C) 194°F (90°C) | VOLTAGE 600V |
| AMPACITY @ 60°C 20 | AMPACITY @ 75°C 20 | AMPACITY @ 90C 20 |
| UL STYLE / STANDARD UL 83 UL 1063 | ENVIRONMENTAL Heat moisture oil gasoline and sunlight resistant | WEIGHT LBS/MFT 24 |
