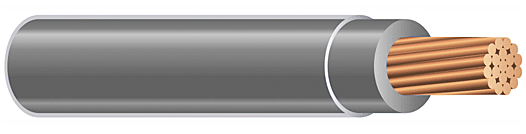

THHN Building Wire - 10 AWG - Gray - Stranded Conductor
THHN Building Wire - 10 AWG - Gray - Stranded Conductor
Part #: KLTTHHN10-19-8
Mfg #: THHN10-19-8
Manufacturer: Approved Manufacturers
Mfg #: THHN10-19-8
Manufacturer: Approved Manufacturers
Contact 800-633-6339 for Availability
$546.56 / 1,000 FT $0.55 / 1 FT
THHN wire is primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. 10 gauge, gray Stranded Conductor
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER Approved Manufacturers | MANUFACTURER PART NUMBER THHN10-19-8 | TYPE THHN |
| AWG/GAUGE 10 | CONDUCTOR STRANDING Stranded | STRAND COUNT 19 |
| CONDUCTOR MATERIAL Annealed Copper | SHIELDING Unshielded | JACKET MATERIAL Nylon |
| JACKET COLOR Gray | JACKET THICKNESS (MM) 0.10 | JACKET THICKNESS (IN) 0.004 |
| INSULATION THICKNESS (IN) 0.02 | INSULATION THICKNESS (MM) 0.508 | NOMINAL OD (IN) 0.161 |
| NOMINAL OD (MM) 4.0894 | TEMPERATURE 140°F (60°C) 167°F (75°C) 194°F (90°C) | VOLTAGE 600V |
| AMPACITY @ 60°C 30 | AMPACITY @ 75°C 30 | AMPACITY @ 90C 30 |
| UL STYLE / STANDARD UL 83 UL 1063 | ENVIRONMENTAL Heat moisture oil gasoline and sunlight resistant | WEIGHT LBS/MFT 38 |
