TE Raychem SRFR 2.9/1.7 Single Wall Heat Shrink Tubing - Gray
TE Raychem SRFR 2.9/1.7 Single Wall Heat Shrink Tubing - Gray
Part #: RAYSRFR-2.9/1.7-8
Mfg #: SRFR-2.9/1.7-8
Manufacturer: TE Connectivity
Mfg #: SRFR-2.9/1.7-8
Manufacturer: TE Connectivity
Contact 800-633-6339 for Availability
Request Quote for Price

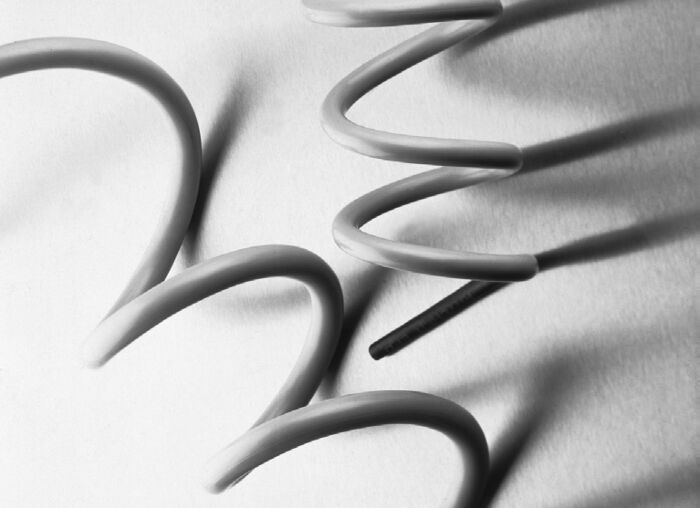

TE Connectivity's SRFR 2.9/1.7 Silicone Rubber heat shrink tubing is a highly flexible, silicone rubber heat-shrinkable tubing. Gray. TE SRFR-2.9/1.7-8.
Must purchase in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER TE Connectivity | MANUFACTURER PART NUMBER SRFR-2.9/1.7-8 | SERIES SRFR |
| HEAT SHRINK Yes | SHRINK RATIO 1.5:1 | WALL TYPE Single |
| MATERIAL Silicone Rubber | SIZE 2.9/1.7 | COLOR Gray |
| EXPANDED ID (IN) 0.114 | EXPANDED ID (MM) 2.9 | RECOVERED ID MAX (IN) 0.067 |
| RECOVERED ID MAX (MM) 1.7 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.039 | NOMINAL RECOVERED WALL THICKNESS (MM) 1 |
| OPERATING TEMPERATURE -103°F to 392°F (-75°C to 200°C) | RECOVERY TEMPERATURE 347°F (175°C) | SHRINK TEMPERATURE 275°F (135°C) |
| FLEXIBILITY Very Flexible | STANDARDS/APPROVALS UL Approved | TRADE OR BRAND NAME RAYCHEM |
