TE Raychem SFR 3/8 inch Single Wall Heat Shrink Tubing - Black
TE Raychem SFR 3/8 inch Single Wall Heat Shrink Tubing - Black
Part #: RAYSFR-3/8-0
Mfg #: SFR-3/8-0
Manufacturer: TE Connectivity
Mfg #: SFR-3/8-0
Manufacturer: TE Connectivity
Contact 800-633-6339 for Availability
$20,760.00 / 1,000 FT $20.76 / 1 FT

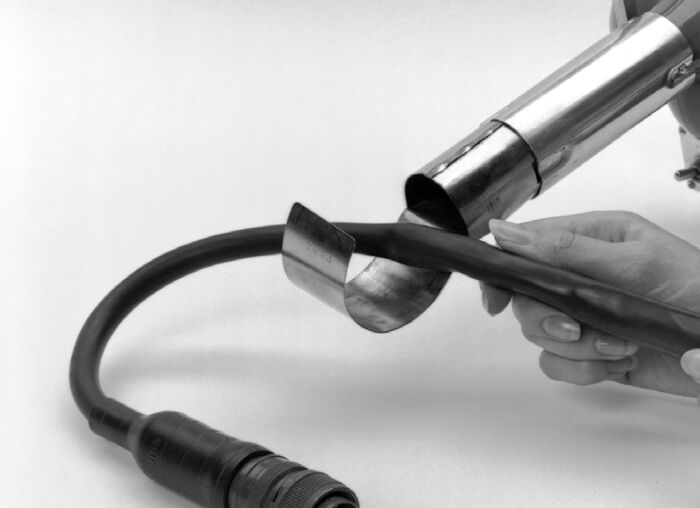

TE Connectivity's SFR 3/8 inch Silicone Elastomer heat shrink tubing is a very flexible, flame-retardant, silicone elastomer tubing with outstanding low-temperature flexibility. Black. TE SFR-3/8-0.
Must purchase in increments of 300.
Specifications
Download Spec Sheet| MANUFACTURER TE Connectivity | MANUFACTURER PART NUMBER SFR-3/8-0 | SERIES SFR |
| HEAT SHRINK Yes | SHRINK RATIO 1.75:1 | WALL TYPE Single |
| MATERIAL Silicone Elastomer | SIZE 3/8 | COLOR Black |
| EXPANDED ID (IN) 0.375 | EXPANDED ID (MM) 9.5 | RECOVERED ID MAX (IN) 0.214 |
| RECOVERED ID MAX (MM) 5.4 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.04 | NOMINAL RECOVERED WALL THICKNESS (MM) 1.02 |
| OPERATING TEMPERATURE -103°F to 356°F (-75°C to 180°C) | RECOVERY TEMPERATURE 347°F (175°C) | SHRINK TEMPERATURE 275°F (135°C) |
| FLAMMABILITY Flame-Retardant | FLEXIBILITY Very Flexible | MIL-SPEC AS23053/10 Full Spools Only |
| TRADE OR BRAND NAME RAYCHEM |
