TE Raychem SFR 1-1/2 inch Single Wall Heat Shrink Tubing - Black
TE Raychem SFR 1-1/2 inch Single Wall Heat Shrink Tubing - Black
Part #: RAYSFR-1-1/2-0
Mfg #: SFR-1-1/2-0
Manufacturer: TE Connectivity
Mfg #: SFR-1-1/2-0
Manufacturer: TE Connectivity
Contact 800-633-6339 for Availability
Request Quote for Price

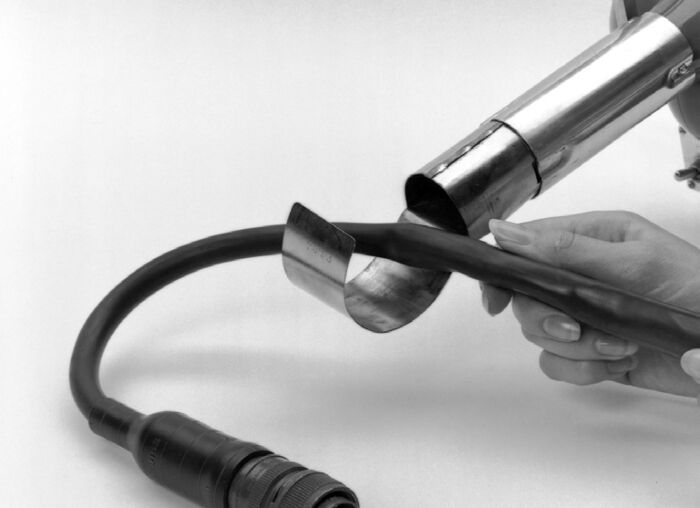

TE Connectivity's SFR 1-1/2 inch Silicone Elastomer heat shrink tubing is a very flexible, flame-retardant, silicone elastomer tubing with outstanding low-temperature flexibility. Black. TE SFR-1-1/2-0.
Must purchase in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER TE Connectivity | MANUFACTURER PART NUMBER SFR-1-1/2-0 | SERIES SFR |
| HEAT SHRINK Yes | SHRINK RATIO 1.75:1 | WALL TYPE Single |
| MATERIAL Silicone Elastomer | SIZE 1-1/2 | COLOR Black |
| EXPANDED ID (IN) 1.5 | EXPANDED ID (MM) 38.1 | RECOVERED ID MAX (IN) 0.857 |
| RECOVERED ID MAX (MM) 21.8 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.095 | NOMINAL RECOVERED WALL THICKNESS (MM) 2.41 |
| OPERATING TEMPERATURE -103°F to 356°F (-75°C to 180°C) | RECOVERY TEMPERATURE 347°F (175°C) | SHRINK TEMPERATURE 275°F (135°C) |
| FLAMMABILITY Flame-Retardant | FLEXIBILITY Very Flexible | MIL-SPEC AS23053/10 Full Spools Only |
| TRADE OR BRAND NAME RAYCHEM |
