TE Raychem NTFR 3/4 inch Single Wall Heat Shrink Tubing - Black
TE Raychem NTFR 3/4 inch Single Wall Heat Shrink Tubing - Black
Part #: RAYNTFR-3/4-0
Mfg #: NTFR-3/4-0-SP
Manufacturer: TE Connectivity
Mfg #: NTFR-3/4-0-SP
Manufacturer: TE Connectivity
Contact 800-633-6339 for Availability
$5,080.00 / 1,000 FT $5.08 / 1 FT

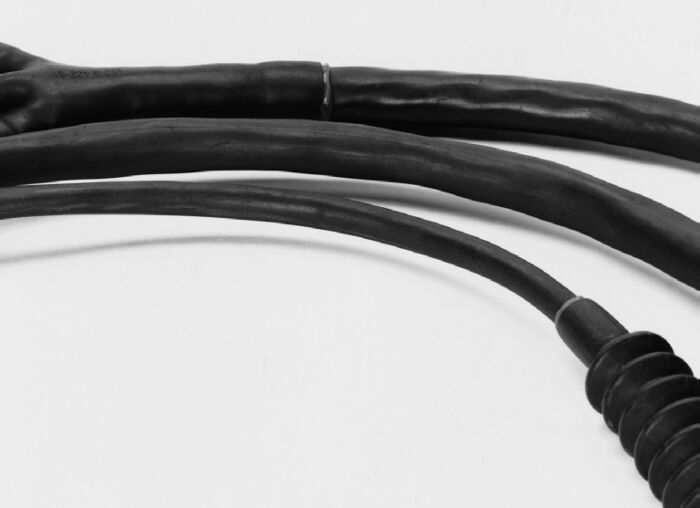

TE Connectivity's NTFR 3/4 inch Neoprene heat shrink tubing is a very flexible neoprene elastomer shrink tubing that remains flexible at low temperatures wtihout cracking. Black. TE NTFR 3/4-0.
Must purchase in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER TE Connectivity | MANUFACTURER PART NUMBER NTFR-3/4-0-SP | SERIES NTFR |
| HEAT SHRINK Yes | SHRINK RATIO 2:1 | WALL TYPE Single |
| MATERIAL Neoprene | SIZE 3/4 | COLOR Black |
| EXPANDED ID (IN) 0.75 | EXPANDED ID (MM) 19.1 | RECOVERED ID MAX (IN) 0.428 |
| RECOVERED ID MAX (MM) 10.9 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.057 | NOMINAL RECOVERED WALL THICKNESS (MM) 1.44 |
| OPERATING TEMPERATURE -94°F to 249.8°F (-70°C to 121°C) | RECOVERY TEMPERATURE 275°F (135°C) | SHRINK TEMPERATURE 194°F (90°C) |
| FLEXIBILITY Very Flexible | MIL-SPEC AS23053/1 Full Spools Only | TRADE OR BRAND NAME RAYCHEM |
