TE Raychem NTFR 1/8 inch Single Wall Heat Shrink Tubing - Black
TE Raychem NTFR 1/8 inch Single Wall Heat Shrink Tubing - Black
Part #: RAYNTFR-1/8-0
Mfg #: NTFR-1/8-0-SP
Manufacturer: TE Connectivity
Mfg #: NTFR-1/8-0-SP
Manufacturer: TE Connectivity
Contact 800-633-6339 for Availability
$6,685.80 / 1,000 FT

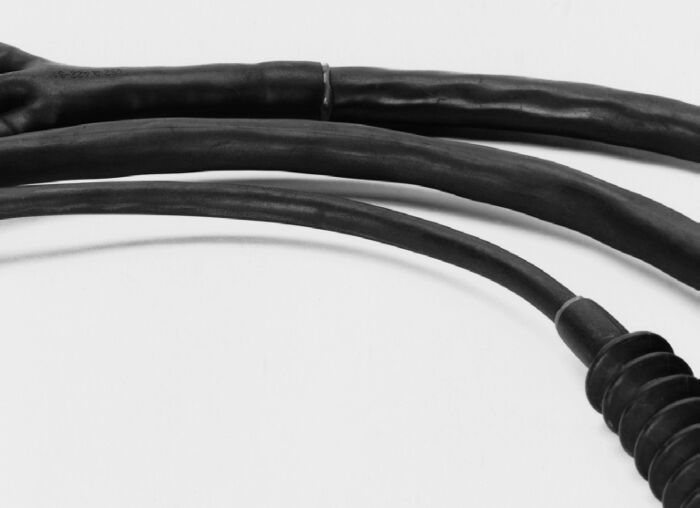

TE Connectivity's NTFR 1/8 inch Neoprene heat shrink tubing is a very flexible neoprene elastomer shrink tubing that remains flexible at low temperatures wtihout cracking. Black. TE NTFR 1/8-0.
Available to buy in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER TE Connectivity | MANUFACTURER PART NUMBER NTFR-1/8-0-SP | SERIES NTFR |
| HEAT SHRINK Yes | SHRINK RATIO 2:1 | WALL TYPE Single |
| MATERIAL Neoprene | SIZE 1/8 | COLOR Black |
| EXPANDED ID (IN) 0.125 | EXPANDED ID (MM) 3.2 | RECOVERED ID MAX (IN) 0.061 |
| RECOVERED ID MAX (MM) 1.6 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.027 | NOMINAL RECOVERED WALL THICKNESS (MM) 0.69 |
| OPERATING TEMPERATURE -94°F to 249.8°F (-70°C to 121°C) | RECOVERY TEMPERATURE 275°F (135°C) | SHRINK TEMPERATURE 194°F (90°C) |
| FLEXIBILITY Very Flexible | MIL-SPEC AS23053/1 Full Spools Only | TRADE OR BRAND NAME RAYCHEM |
