TE Raychem DWP-125 3/4 inch Dual Wall Heat Shrink Tubing - Black
TE Raychem DWP-125 3/4 inch Dual Wall Heat Shrink Tubing - Black
Part #: RAYDWP-3/4-0
Mfg #: DWP-125 3/4-0
Manufacturer: TE Connectivity
Mfg #: DWP-125 3/4-0
Manufacturer: TE Connectivity
In Stock
$5,720.00 / 1,000 FT

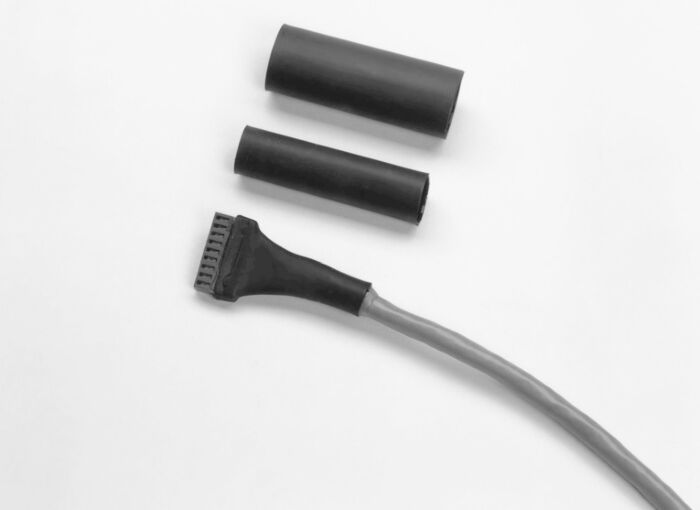

TE Connectivity's DWP-125 3/4 inch Polyolefin heat shrink tubing is an adhesive-lined, medium-wall heat-shrinkable tubing for applications requiring mechanical protection and sealing. Black. TE DWP-125 3/4-0.
Available to buy in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER TE Connectivity | MANUFACTURER PART NUMBER DWP-125 3/4-0 | SERIES DWP-125 |
| HEAT SHRINK Yes | SHRINK RATIO 3:1 | WALL TYPE Dual |
| MATERIAL Polyolefin | SIZE 3/4 | COLOR Black |
| EXPANDED ID (IN) 0.75 | EXPANDED ID (MM) 19 | RECOVERED ID MAX (IN) 0.23 |
| RECOVERED ID MAX (MM) 6 | NOMINAL RECOVERED WALL THICKNESS (IN) 0.08 | NOMINAL RECOVERED WALL THICKNESS (MM) 2.03 |
| OPERATING TEMPERATURE -40°F to 230°F (-40°C to 110°C) | RECOVERY TEMPERATURE 257°F (125°C) | FLAMMABILITY Flame-Retardant |
| FLEXIBILITY Flexible | STANDARDS/APPROVALS UL Approved CSA Approved | TRADE OR BRAND NAME RAYCHEM |
