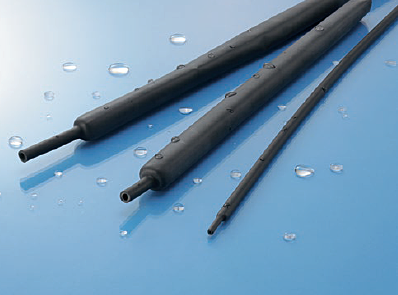

Sumitube W3B2 1/8" Dual Wall Heat Shrink Tubing, Black, 3:1 Shrink Ratio

Name: Sumitube W3B2 1/8" Dual Wall Heat Shrink Tubing, Black, 3:1 Shrink Ratio
SKU: SUMW3B2-1/8-0
Price: 215 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: SUMW3B2-1/8-0
Mfg #: SUMW3B2-1/8-0
Manufacturer: Sumitomo

Contact 800-633-6339 for Availability

$215.0000 / 100 FT

Sumitomo's Sumitube W3B2 is suitable for waterproof sealing of irregular shaped electronic devices, encapsulation of wire branches and the insulation/protection of wire joints. Multiple colors available. 1/8 inch, Black, Polyolefin, Dual Wall, 3:1 Shrink Ratio

Available to buy in increments of 400.

Specifications

Download Spec Sheet

MANUFACTURER Sumitomo	MANUFACTURER PART NUMBER SUMW3B2-1/8-0	AVAILABILITY Contact 800-633-6339 for Availability
SERIES Sumitube W3B2	HEAT SHRINK Yes	SHRINK RATIO 3:1
WALL TYPE Dual	MATERIAL Polyolefin	SIZE 1/8
COLOR Black	EXPANDED ID (MM) 3.2	RECOVERED ID MAX (MM) 0.6
NOMINAL RECOVERED WALL THICKNESS (MM) 0.95	OPERATING TEMPERATURE -55°C to 125°C	SHRINK TEMPERATURE 110°C
FLAMMABILITY Flame-Retardant	FLEXIBILITY Flexible	STANDARDS/APPROVALS UL Approved CSA Approved
MIL-SPEC AS23053/4 Full Spools Only
