Carolprene® Jacketed Type SOOW Portable Cord - 8 AWG 3 Conductor - 600V - Black - 16063

Carolprene® Jacketed Type SOOW Portable Cord - 8 AWG 3 Conductor - 600V - Black - 16063
Part #: KLTSOOW-8/3-0
Manufacturer: Approved Manufacturers

Contact 800-633-6339 for Availability

$5,248.00 / 1,000 FT

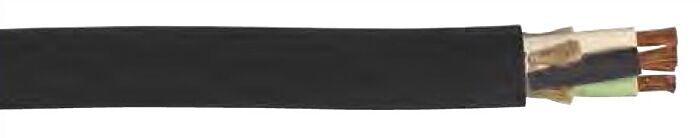

This Carol Brand 8 guage, 3 conductor type SOOW Portable Cordage is sunlight (UV) and weather-resistant and is great for a variety of applications - from small motors and machinery to marinas and docks. This is a black jacketed cable.

Available to buy in increments of 250.

Specifications

Download Spec Sheet
MANUFACTURER
Approved Manufacturers
TYPE
SOOW
AWG/GAUGE
8
NUMBER OF CONDUCTORS
3
CONDUCTOR MATERIAL
Bare copper
JACKET MATERIAL
Carolprene® Thermoset Rubber
JACKET COLOR
Black
VOLTAGE
600V
NOMINAL OD (IN)
0.84
NOMINAL OD (MM)
21.33
INSULATION MATERIAL
EPDM
INSULATION THICKNESS (IN)
0.06
INSULATION THICKNESS (MM)
1.52
AMPERAGE (AMPS)
40
TEMPERATURE
-40°C to +90°C
STANDARDS/APPROVALS
UL Approved
CSA Approved
UL STYLE / STANDARD
UL 62
SERIES
Carolprene®
WEIGHT LBS/MFT
450
