Carolprene® Jacketed Type SOOW Portable Cord - 6 AWG 3 Conductor - 600V - Black - 16073
Carolprene® Jacketed Type SOOW Portable Cord - 6 AWG 3 Conductor - 600V - Black - 16073
Part #: CARSOOW-6/3-0
Mfg #: 01825.33.01
Manufacturer: General Cable
Mfg #: 01825.33.01
Manufacturer: General Cable
Contact 800-633-6339 for Availability
$7,346.88 / 1,000 FT $7.35 / 1 FT

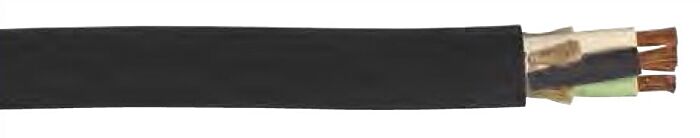

This Carol Brand 6 guage, 3 conductor type SOOW Portable Cordage is sunlight (UV) and weather-resistant and is great for a variety of applications - from small motors and machinery to marinas and docks. This is a black jacketed cable.
Must purchase in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER General Cable | MANUFACTURER PART NUMBER 01825.33.01 | TYPE SOOW |
| AWG/GAUGE 6 | NUMBER OF CONDUCTORS 3 | CONDUCTOR MATERIAL Bare Copper |
| JACKET MATERIAL Carolprene® Thermoset Rubber | JACKET COLOR Black | VOLTAGE 600V |
| NOMINAL OD (IN) 0.98 | NOMINAL OD (MM) 24.89 | INSULATION MATERIAL EPDM |
| INSULATION THICKNESS (IN) 0.06 | INSULATION THICKNESS (MM) 1.52 | AMPERAGE (AMPS) 55 |
| TEMPERATURE -40°C to +90°C | STANDARDS/APPROVALS UL Approved CSA Approved | UL STYLE / STANDARD UL 62 |
| SERIES Carolprene® | WEIGHT LBS/MFT 637 |
