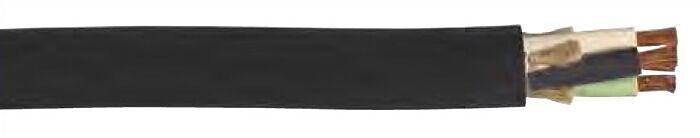

Carolprene® Jacketed Type SOOW Portable Cord - 4 AWG 3 Conductor - 600V - Black - 01822
Carolprene® Jacketed Type SOOW Portable Cord - 4 AWG 3 Conductor - 600V - Black - 01822
Request Quote for Price
This Carol Brand 4 guage, 3 conductor type SOOW Portable Cordage has high flexibility, excellent abrasion and weather resistance, and is best suited for smaller motors, portable tools and appliance applications. This is a Non-UL portable cord.
Must purchase in increments of 250.
Specifications
Download Spec Sheet| MANUFACTURER General Cable | MANUFACTURER PART NUMBER 01822 | TYPE SOOW |
| AWG/GAUGE 4 | NUMBER OF CONDUCTORS 3 | CONDUCTOR MATERIAL Bare Copper |
| JACKET MATERIAL Carolprene® Thermoset Rubber | JACKET COLOR Black | VOLTAGE 600V |
| NOMINAL OD (IN) 0.925 | NOMINAL OD (MM) 23.49 | INSULATION MATERIAL EPDM |
| INSULATION THICKNESS (IN) 0.05 | INSULATION THICKNESS (MM) 1.27 | AMPERAGE (AMPS) 70 |
| TEMPERATURE -40°C to +90°C | SERIES Carolprene® | WEIGHT LBS/MFT 683 |
