Carolprene® Jacketed Type SJOOW Portable Cord - 16 AWG 3 Conductor - 300V - Black - 01342

Name: Carolprene® Jacketed Type SJOOW Portable Cord - 16 AWG 3 Conductor - 300V - Black - 01342
Brand: Approved Manufacturers
SKU: KLTSJOOW-16/3-0-1
Price: 0.57 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: KLTSJOOW-16/3-0-1
Manufacturer: Approved Manufacturers

Contact 800-633-6339 for Availability

Request Quote for Price

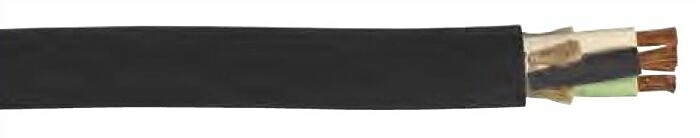

This Carol Brand 16 guage, 3 conductor type SJOOW Portable Cordage has high flexibility, excellent abrasion and weather resistance, and is best suited for smaller motors, portable tools and appliance applications. This is a black jacketed cable.

Must purchase in increments of 250.

Specifications

Download Spec Sheet

MANUFACTURER Approved Manufacturers	TYPE SJOOW	AWG/GAUGE 16
NUMBER OF CONDUCTORS 3	CONDUCTOR MATERIAL Bare Copper	JACKET MATERIAL Carolprene® Thermoset Rubber
JACKET COLOR Black	VOLTAGE 300V	NOMINAL OD (IN) 0.33
NOMINAL OD (MM) 8.38	INSULATION MATERIAL EPDM	INSULATION THICKNESS (IN) 0.03
INSULATION THICKNESS (MM) 0.76	AMPERAGE (AMPS) 13	TEMPERATURE -40°C to +90°C
STANDARDS/APPROVALS UL Approved CSA Approved	UL STYLE / STANDARD UL 62	SERIES Carolprene®
WEIGHT LBS/MFT 72
