Alpha Xtra-Guard®1 Unshielded Multiconductor Cable - 18 AWG 8 Conductor - Slate - 300V - 500 ft

Name: Alpha Xtra-Guard®1 Unshielded Multiconductor Cable - 18 AWG 8 Conductor - Slate - 300V - 500 ft
Brand: Alpha Wire
SKU: ALP5068C-SL002
Price: 14944.72 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALP5068C-SL002
Mfg #: 5068C SL002
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$14,944.72 / EA

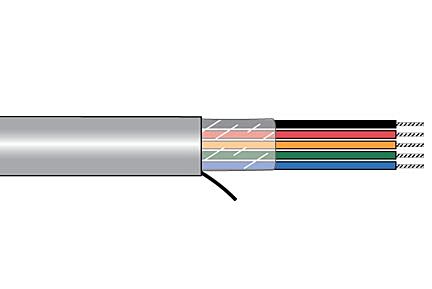

Alpha Xtra-Guard®1 is a high performing PVC control cable for general purpose applications featuring a premium-grade PVC insulation and jacket for easier routing, oil resistance and UV sun resistance. Unshielded Multiconductor, 300V, Slate, 500ft, 5068C SL002

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER 5068C SL002	SERIES Xtra-Guard 1
AWG/GAUGE 18	NUMBER OF CONDUCTORS 8	CONDUCTOR MATERIAL Tinned Copper
CONDUCTOR STRANDING Stranded	SHIELDING Unshielded	JACKET COLOR Gray
JACKET MATERIAL PVC	NOMINAL OD (IN) 0.332	NOMINAL OD (MM) 8.4328
VOLTAGE 300V	TEMPERATURE 105°C	ATTRIBUTES Multi-Conductor
STANDARDS/APPROVALS VW-1 UL 1685
