Alpha Xtra-Guard®1 Foil Shield Multipair Cable - 24 AWG 9 Pair - Slate - 300V - 100 ft

Name: Alpha Xtra-Guard®1 Foil Shield Multipair Cable - 24 AWG 9 Pair - Slate - 300V - 100 ft
Brand: Alpha Wire
SKU: ALP5499C-SL005
Price: 3570.72 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALP5499C-SL005
Mfg #: 5499C SL005
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$3,570.72 / 100 FT $35.71 / 1 FT

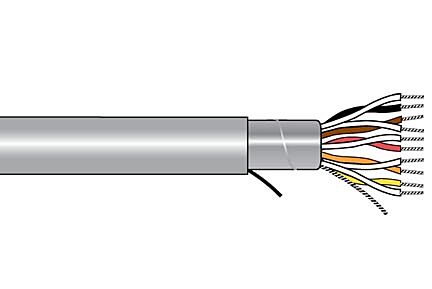

Alpha Xtra-Guard®1 is a high performing PVC control cable for general purpose applications featuring a premium-grade PVC insulation and jacket for easier routing, oil resistance and UV sun resistance. Foil Shield, Multipair, 300V, Slate, 100ft, 5499C SL005

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER 5499C SL005	SERIES Xtra-Guard 1
AWG/GAUGE 24	NUMBER OF CONDUCTORS 9 pair	CONDUCTOR MATERIAL Tinned copper
CONDUCTOR STRANDING Stranded	SHIELDING Foil	JACKET COLOR Gray
JACKET MATERIAL PVC	NOMINAL OD (IN) 0.336	NOMINAL OD (MM) 8.5344
VOLTAGE 300V	TEMPERATURE 105°C	ATTRIBUTES Multi-Conductor
STANDARDS/APPROVALS VW-1 UL 1685
