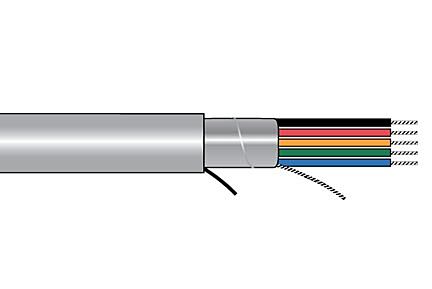

Alpha Xtra-Guard®1 Foil Shield Multiconductor Cable - 24 AWG 6 Conductor - Slate - 300V - 1000 ft
Alpha Xtra-Guard®1 Foil Shield Multiconductor Cable - 24 AWG 6 Conductor - Slate - 300V - 1000 ft
Part #: ALP5096C-SL001
Mfg #: 5096C SL001
Manufacturer: Alpha Wire
Mfg #: 5096C SL001
Manufacturer: Alpha Wire
In Stock
$3,172.48 / 1,000 FT $3.17 / 1 FT
Alpha Xtra-Guard®1 is a high performing PVC control cable for general purpose applications featuring a premium-grade PVC insulation and jacket for easier routing, oil resistance and UV sun resistance. Foil Shield, Multiconductor, 300V, Slate, 1000ft, 5096C SL001
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER Alpha Wire | MANUFACTURER PART NUMBER 5096C SL001 | SERIES Xtra-Guard 1 |
| AWG/GAUGE 24 | NUMBER OF CONDUCTORS 6 | CONDUCTOR MATERIAL Tinned Copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Foil | JACKET COLOR Gray |
| JACKET MATERIAL PVC | NOMINAL OD (IN) 0.205 | NOMINAL OD (MM) 5.207 |
| VOLTAGE 300V | TEMPERATURE 105°C | ATTRIBUTES Multi-Conductor |
| STANDARDS/APPROVALS VW-1 UL 1685 |
