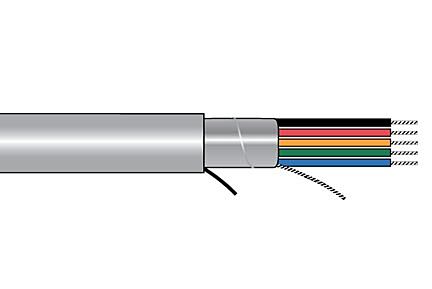

Alpha Xtra-Guard®1 Foil Shield Multiconductor Cable - 16 AWG 2 Conductor - Slate - 300V - 500 ft - Color Code I2

Name: Alpha Xtra-Guard®1 Foil Shield Multiconductor Cable - 16 AWG 2 Conductor - Slate - 300V - 500 ft - Color Code I2
Brand: Alpha Wire
SKU: ALP5362/1C-SL002
Price: 8178.44 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALP5362/1C-SL002
Mfg #: 5362/1C SL002
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$8,178.44 / EA

Alpha Xtra-Guard®1 is a high performing PVC control cable for general purpose applications featuring a premium-grade PVC insulation and jacket for easier routing, oil resistance and UV sun resistance. Foil Shield, Multiconductor, 300V, Slate, 500ft, 5362/1C SL002, Color Code I2

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER 5362/1C SL002	SERIES Xtra-Guard 1
AWG/GAUGE 16	NUMBER OF CONDUCTORS 2	CONDUCTOR MATERIAL Tinned Copper
CONDUCTOR STRANDING Stranded	SHIELDING Foil	JACKET COLOR Gray
JACKET MATERIAL PVC	NOMINAL OD (IN) 0.254	NOMINAL OD (MM) 6.4516
VOLTAGE 300V	TEMPERATURE 105°C	ATTRIBUTES Multi-Conductor
STANDARDS/APPROVALS VW-1 UL 1685
