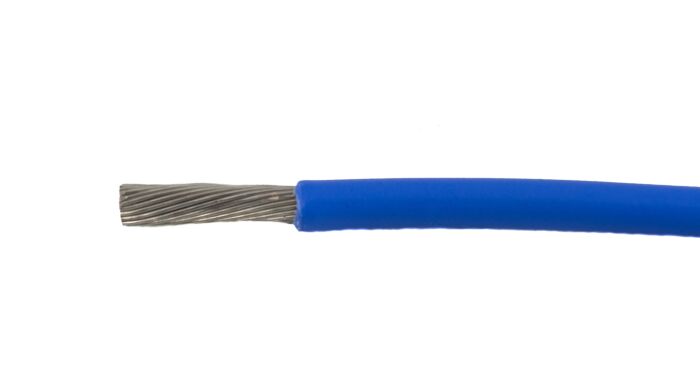

Alpha Wire EcoWire® Plus Hook-Up/Lead Wire - 28 AWG 7 Stranded Conductor - Bare copper - 300V - Blue - 100 ft

Name: Alpha Wire EcoWire® Plus Hook-Up/Lead Wire - 28 AWG 7 Stranded Conductor - Bare copper - 300V - Blue - 100 ft
Brand: Alpha Wire
SKU: ALP6820-BL005
Price: 117.6 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALP6820-BL005
Mfg #: 6820 BL005
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$117.60 / 100 FT $1.18 / 1 FT

Alpha Wire's EcoWire® Plus 300V Hook-up Wire has all of the reduced diameter, lighter weight, zero halogen and 100% recyclable advantages of EcoWire plus higher temperature range and additional fluid resistance for demanding applications. EcoWire Plus, 28 AWG, Stranded Conductor, Bare copper, 300V, Blue, 100ft, 6820 BL005

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER 6820 BL005	SERIES EcoWire Plus
AWG/GAUGE 28	CONDUCTOR STRANDING Stranded	CONDUCTOR MATERIAL Bare Copper
JACKET COLOR Blue	INSULATION MATERIAL mPPE	NOMINAL OD (IN) 0.031
NOMINAL OD (MM) 0.7874	TEMPERATURE -40°C to 110°C	VOLTAGE 300V
STANDARDS/APPROVALS ISO 6722
