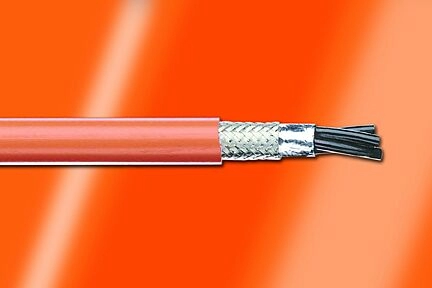

Alpha ALPSF61114CY OR002 Industrial Series SF Servo Cable - 14 AWG, 4 Conductor - Orange
Mfg #: SF61114CY OR002
Manufacturer: Alpha Wire
Contact 800-633-6339 for Availability
Alpha Wire Industrial Series SF is a highly flexible Multi-Conductor cable - 14 AWG 4 condutor for power/ground and two individually shielded pairs for break or temperature control. Inner Conductors are PVC/Nylon insulation, foil and braid shield - Orange TPE jacket.
Alpha Part Number ALPSF61114CY-OR002
Specifications
Download Spec SheetMANUFACTURER Alpha Wire | MANUFACTURER PART NUMBER SF61114CY OR002 | AVAILABILITY Contact 800-633-6339 for Availability |
SERIES Industrial Series SF | AWG/GAUGE 14 | NUMBER OF CONDUCTORS 4 |
CONDUCTOR MATERIAL Tinned copper | CONDUCTOR COLOR Multiconductor: 1 green/yellow and 3 black numbered; Pairs: Black-red black-white | CONDUCTOR STRANDING Stranded |
STRAND COUNT 41X30 | SHIELDING Foil Braid | JACKET COLOR Orange |
JACKET MATERIAL Thermoplastic Elastomer (TPE) | NOMINAL OD (IN) 0.44 | NOMINAL OD (MM) 11.18 |
VOLTAGE 600V | DYNAMIC TEMPERATURE RATING -5°C to +90°C | STATIC TEMPERATURE RATING -25°C to +90°C |
ATTRIBUTES Multi-Conductor | STANDARDS/APPROVALS UL Approved CSA Approved CE Approved | ADDITIONAL STANDARDS UL TC-ER|UL WTTC|CSA AWM I/II A/B FT4|CSA CIC/TC|CE LVD 2006/95/EC |
APPLICATION High flexing applications; connecting power between the supply and servo motors drives and controllers; Robotics Automated pick-and-place systems; Automated handling systems; Factory equipment interconnects |
