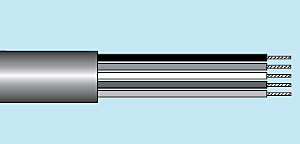

Alpha Essentials Multi-Conductor Low Smoke Zero Halogen (LSZH) Cable - Unshielded - 22 AWG 4 Conductor - Gray - 300V - 500ft - Alpha 1174L SL002

Name: Alpha Essentials Multi-Conductor Low Smoke Zero Halogen (LSZH) Cable - Unshielded - 22 AWG 4 Conductor - Gray - 300V - 500ft - Alpha 1174L SL002
Brand: Alpha Wire
SKU: ALP1174L-SL002
Price: 902.12 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALP1174L-SL002
Mfg #: 1174L SL002
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$902.12 / EA

Alpha Essentials Low Smoke Zero Halogen (LSZH) Multi-Conductor cable is suited for a broad array of communications and control applications and is constructed to perform reliably electrically, mechanically and environmentally each and every time. Unshielded, Low Smoke Zero Halogen (LSZH) insulation, Low Smoke Zero Halogen (LSZH) jacket, 300V, Gray, 500ft, 1174L SL002

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER 1174L SL002	SERIES Alpha Essentials LSZH
AWG/GAUGE 22	NUMBER OF CONDUCTORS 4	CONDUCTOR MATERIAL Tinned Copper
CONDUCTOR STRANDING Stranded	SHIELDING Unshielded	JACKET COLOR Gray
JACKET MATERIAL Low Smoke Zero Halogen (LSZH)	NOMINAL OD (IN) 0.171	VOLTAGE 300V
TEMPERATURE -4°F to +167deg;F -20°C to +75°C	ATTRIBUTES Multi-Conductor	STANDARDS/APPROVALS UL Approved CSA Approved CE Approved
