Alpha Essentials Micro Coaxial 50 Ohm Cable - Spiral Shield - 38 AWG - White - 30V - 328 ft - 9438 WH033

Name: Alpha Essentials Micro Coaxial 50 Ohm Cable - Spiral Shield - 38 AWG - White - 30V - 328 ft - 9438 WH033
SKU: ALP9438-WH033
Price: 768.68 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALP9438-WH033
Mfg #: 9438 WH033
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$768.68 / EA

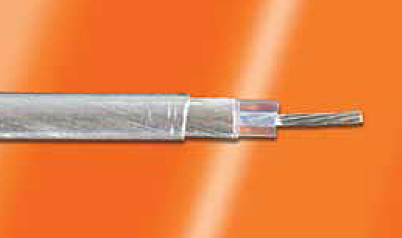

Alpha Essentials Micro Coaxial is a high performing cable with quality dielectrics to achieve low capacitance, high velocities of propagation and tight tolerances for maximum signal integrity. Spiral Shield, 30V, White, 328ft, 9438 WH033

Available to buy in increments of 328.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER 9438 WH033	SERIES Alpha Essentials Micro Coax
COAX CONSTRUCTION Micro Coaxial	COAX TYPE Micro Coaxial	AWG/GAUGE 38
CONDUCTOR STRANDING Stranded	NUMBER OF CONDUCTORS 1	JACKET COLOR White
JACKET MATERIAL PFA	SHIELDING Spiral	IMPEDANCE 50 Ohm
VOLTAGE 30V	NOMINAL OD (IN) 0.0175
