Alpha Essentials Coaxial RG-213 50 Ohm Cable - Braid Shield - 13 AWG - Black - 3700V - 100 ft - 9213 BK005

Name: Alpha Essentials Coaxial RG-213 50 Ohm Cable - Braid Shield - 13 AWG - Black - 3700V - 100 ft - 9213 BK005
Brand: Alpha Wire
SKU: ALP9213-BK005
Price: 821.6 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALP9213-BK005
Mfg #: 9213 BK005
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$821.60 / 100 FT $8.22 / 1 FT

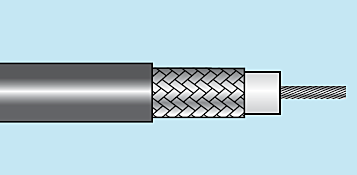

Alpha Essentials Coaxial RG-213 is a high performing cable with quality dielectrics to achieve low capacitance, high velocities of propagation and tight tolerances for maximum signal integrity. Braid Shield, 3700V, Black, 100ft, 9213 BK005

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER 9213 BK005	SERIES Alpha Essentials Coax
COAX CONSTRUCTION Coaxial	COAX TYPE RG-213	AWG/GAUGE 13
CONDUCTOR STRANDING Stranded	NUMBER OF CONDUCTORS 1	JACKET COLOR Black
JACKET MATERIAL PVC	SHIELDING Braid	IMPEDANCE 50 Ohm
VOLTAGE 3700V	NOMINAL OD (IN) 0.405	MIL-SPEC MIL-DTL-17
