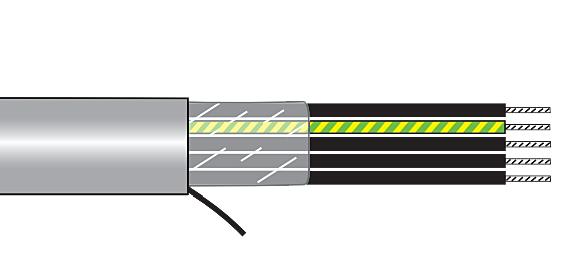

Alpha EcoFlex PUR Unshielded Multiconductor Cable - 24 AWG 5 Conductor - Slate - 100 ft
Mfg #: 80010 SL005
Manufacturer: Alpha Wire
Contact 800-633-6339 for Availability
Alpha's EcoFlex PUR continuous flex control cable is constructed of a polyurethane jacket and mPPE insulation to provide abrasion, UV and oil resistance in a zero halogen design that is up to 40% smaller and 44% lighter than other 600V continuous flex cables. EcoFlex PUR , Unshielded multi-conductor, 100 ft putups, 80010 SL005
Specifications
Download Spec SheetMANUFACTURER Alpha Wire | MANUFACTURER PART NUMBER 80010 SL005 | AVAILABILITY Contact 800-633-6339 for Availability |
SERIES EcoFlex PUR | AWG/GAUGE 24 | NUMBER OF CONDUCTORS 5 |
CONDUCTOR MATERIAL Tinned copper | CONDUCTOR STRANDING Stranded | SHIELDING Unshielded |
JACKET COLOR Gray | JACKET MATERIAL Polyurethane (PUR) | NOMINAL OD (IN) 0.19 |
NOMINAL OD (MM) 4.826 | VOLTAGE 600V | TEMPERATURE -40°C to +80°C |
ATTRIBUTES Multi-Conductor | STANDARDS/APPROVALS UL AWM |
