Alpha 67010 YL033 Metric EcoWire® Hook-Up/Lead Wire - 17 AWG - 56/0.16 Stranding Yellow mPPE Insulation - 100 Meter Put-Up

Name: Alpha 67010 YL033 Metric EcoWire® Hook-Up/Lead Wire - 17 AWG - 56/0.16 Stranding Yellow mPPE Insulation - 100 Meter Put-Up
Brand: Alpha Wire
SKU: ALP67010-YL033
Price: 414.56 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: ALP67010-YL033
Mfg #: 67010 YL033
Manufacturer: Alpha Wire

Contact 800-633-6339 for Availability

$414.56 / EA

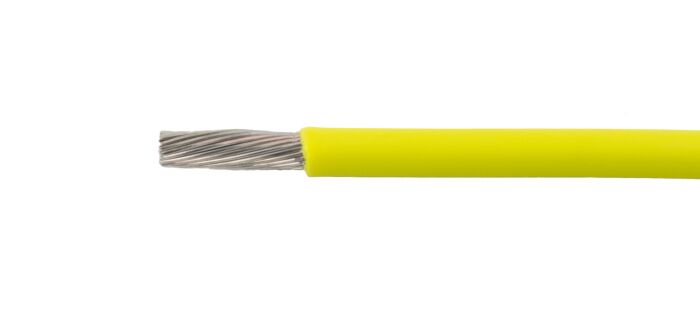

Alpha EcoWire® is a metric hook-up wire with yellow mPPE insulation that provides better performance than PVC, and is smaller, lighter, and environmentally friendly.

Alpha part number 67010 YL033.

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER Alpha Wire	MANUFACTURER PART NUMBER 67010 YL033	SERIES EcoWire Metric
AWG/GAUGE 17	CONDUCTOR STRANDING Stranded	STRAND COUNT 56/0.16
CONDUCTOR MATERIAL Tinned Copper	JACKET COLOR Yellow	JACKET MATERIAL mPPE
NOMINAL OD (IN) 0.075	NOMINAL OD (MM) 1.91	TEMPERATURE -40°F to +105°F -40°C to +40°C
VOLTAGE 600V	STANDARDS/APPROVALS UL Approved CE Approved VW-1	ADDITIONAL STANDARDS C(RU) AWG A/B FT1 C9RU) UL AWM 11028 UL VW-1 CE IEC 60332-23
WEIGHT LBS/MFT 0.0054
