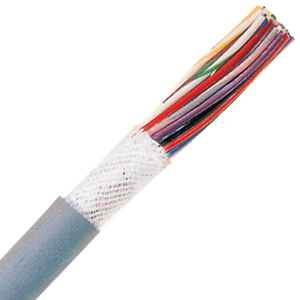

892410 - LAPP UNITRONIC® FD 890 Data, Signal & Control Cable - 24 AWG/10 Conductor - Gray
892410 - LAPP UNITRONIC® FD 890 Data, Signal & Control Cable - 24 AWG/10 Conductor - Gray
$7,574.22 / 1,000 FT $7.57 / 1 FT
LAPP UNITRONIC® FD 890 is designed for continuous flexing signal and low voltage control applications. The specially blended PVC jacket is resistant to most oils, solvents, and water-based coolants. It is ideal for high-speed automated equipment; robotics; CNC and multi-axis cutting equipment; other cable track applications. LAPP part number 892410.
Must purchase in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 892410 | TYPE Data Signal & Control |
| SERIES UNITRONIC® FD 890 | AWG/GAUGE 24 | NUMBER OF CONDUCTORS 10 |
| CONDUCTOR MATERIAL Bare copper | CONDUCTOR STRANDING Stranded | SHIELDING Unshielded |
| JACKET COLOR Gray | JACKET MATERIAL PVC | NOMINAL OD (IN) 0.349 |
| NOMINAL OD (MM) 8.9 | VOLTAGE 300V | TEMPERATURE 23°F to +194°F -5°C to +90°C |
| FLEXIBILITY Continuous flex | ATTRIBUTES Multi-Conductor | STANDARDS/APPROVALS UL Approved CSA Approved CE Approved |
