OBSOLETE - 8920124S - LAPP ÖLFLEX® FD 890 CY Shielded Multiconductor Cable - 20 AWG 12 Conductor - Black

Name: OBSOLETE - 8920124S - LAPP ÖLFLEX® FD 890 CY Shielded Multiconductor Cable - 20 AWG 12 Conductor - Black
Brand: LAPP
SKU: OLF8920124S
Price: 6183.94 USD
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Part #: OLF8920124S
Mfg #: 8920124S
Manufacturer: LAPP

Contact 800-633-6339 for Availability

Request Quote for Price

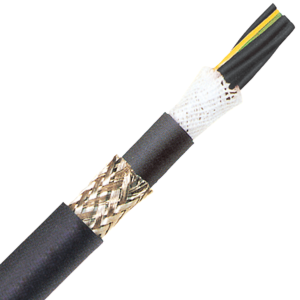

ÖLFLEX® FD 890 CY is a time-tested, performance-proven multi-conductor cable designed for continous flex applications. Optimized flexing life and provides excellent resistance to mineral oils, synthetic oils, and water-based coolants. LAPP part number 8920124S. Crosses are 0027610 and 1026756.

Must purchase in increments of 1.

Specifications

Download Spec Sheet

MANUFACTURER LAPP	MANUFACTURER PART NUMBER 8920124S	SERIES ÖLFLEX® FD 890 CY
AWG/GAUGE 20	NUMBER OF CONDUCTORS 12	CONDUCTOR MATERIAL Bare Copper
CONDUCTOR STRANDING Stranded	SHIELDING Tinned copper braid	JACKET COLOR Black
JACKET MATERIAL PVC	NOMINAL OD (IN) 0.551	NOMINAL OD (MM) 14
VOLTAGE 600V	TEMPERATURE 23°F to +194°F -5°C to +90°C	ATTRIBUTES Multi-Conductor
STANDARDS/APPROVALS UL Approved CSA Approved CE Approved
