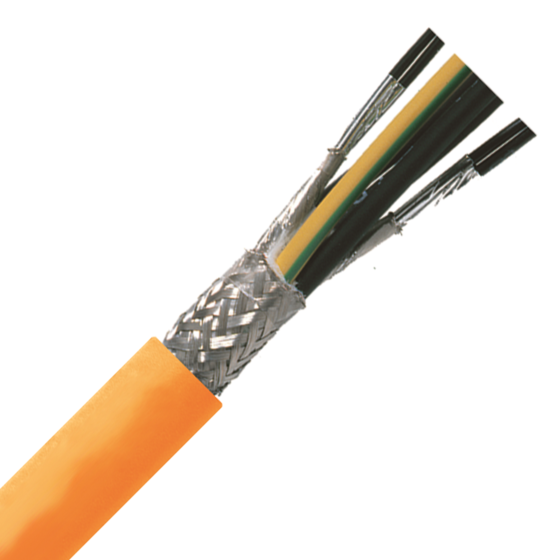

700734 - LAPP ÖLFLEX® SERVO 7TCE - 16 AWG 6 conductors- Orange
700734 - LAPP ÖLFLEX® SERVO 7TCE - 16 AWG 6 conductors- Orange
$6,879.83 / 1,000 FT $6.88 / 1 FT
LAPP ÖLFLEX® SERVO 7TCE is a highly flexible and oil resistant servo cable suitable for mounting either in equipment or in cable tray, eliminating the need for two different types of cable in a single run. A longer cable connection is possible between the drive and the motor due to its low-capacitance design. This one cable solution is ideal for installing power to servo motor systems. 16 AWG/4c + (16 AWG/1pr). LAPP 700734
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 700734 | SERIES ÖLFLEX® SERVO 7TCE |
| AWG/GAUGE 16 | NUMBER OF CONDUCTORS 6 | CONDUCTOR MATERIAL Bare Copper |
| CONDUCTOR STRANDING Stranded | SHIELDING Braid | JACKET COLOR Orange |
| JACKET MATERIAL Thermoplastic Elastomer (TPE) | NOMINAL OD (IN) 0.494 | NOMINAL OD (MM) 12.55 |
| VOLTAGE 600V | TEMPERATURE RANGE -13°F to +194°F -25°C to +90°C | ATTRIBUTES Multi-Conductor |
| TRAY RATINGS UL TC-ER | STANDARDS/APPROVALS UL Approved CE Approved |
