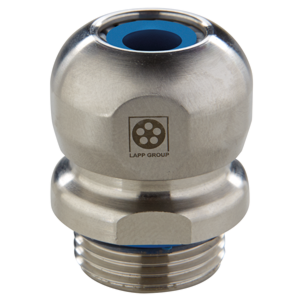

53806749 - LAPP SKINTOP® INOX-R Strain Relief Cable Gland - M12 x 1.5
LAPP SKINTOP® INOX-R is a stainless steel cable gland (with reducer bushing) with special design features that prevent micro-organisms and bacteria from sticking to the surface. The gland has an IP68/69 rating and withstands high pressure and high-temperature wash downs. Typical applications can be found in the food & beverage and pharmaceutical industry. LAPP part number 53806749.
Specifications
Download Spec SheetMANUFACTURER LAPP | MANUFACTURER PART NUMBER 53806749 | AVAILABILITY Contact 800-633-6339 for Availability |
SERIES SKINTOP® INOX-R | THREAD TYPE Metric | THREAD SIZE 12 |
THREAD LENGTH (IN) 0.256 | THREAD LENGTH (MM) 6.5024 | BODY MATERIAL Stainless steel |
COLOR Metallic | CLAMPING RANGE (IN) 0.118 - 0.197 | CLAMPING RANGE (MM) 3 - 5 |
OVERALL LENGTH (IN) 1.154 | BUSHING Silicone | WRENCHING FLATS (IN) 0.63 |
DYNAMIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 IP69 |
STANDARDS/APPROVALS UL Approved CE Approved | ADDITIONAL STANDARDS ATEX |
