53806741 - LAPP SKINTOP® INOX Strain Relief Cable Gland - M20 x 1.5
53806741 - LAPP SKINTOP® INOX Strain Relief Cable Gland - M20 x 1.5
$112.09 / EA

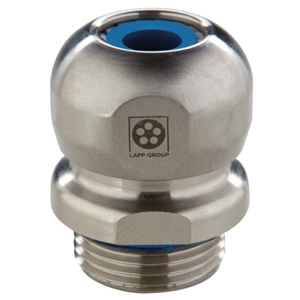

LAPP SKINTOP® INOX is a stainless steel cable gland with special design features that prevent micro-organisms and bacteria from sticking to the surface. The gland has an IP68/69 rating and withstands high pressure and high-temperature wash downs. Typical applications can be found in the food & beverage and pharmaceutical industry. LAPP part number 53806741.
Must purchase in increments of 5.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53806741 | SERIES SKINTOP® INOX |
| THREAD TYPE Metric | THREAD SIZE 20 | THREAD LENGTH (IN) 0.315 |
| THREAD LENGTH (MM) 8.001 | BODY MATERIAL Stainless steel | COLOR Metallic |
| CLAMPING RANGE (IN) 0.275 - 0.512 | CLAMPING RANGE (MM) 7 - 13 | OVERALL LENGTH (IN) 1.398 |
| BUSHING Silicone | WRENCHING FLATS (IN) 0.945 | DYNAMIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C |
| STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 IP69 | STANDARDS/APPROVALS UL Approved CE Approved |
| ADDITIONAL STANDARDS ATEX |
