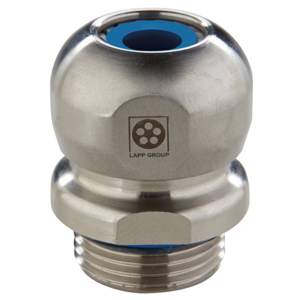

53806740 - LAPP SKINTOP® INOX Strain Relief Cable Gland - M16 x 1.5
53806740 - LAPP SKINTOP® INOX Strain Relief Cable Gland - M16 x 1.5
$101.72 / EA
LAPP SKINTOP® INOX is a stainless steel cable gland with special design features that prevent micro-organisms and bacteria from sticking to the surface. The gland has an IP68/69 rating and withstands high pressure and high-temperature wash downs. Typical applications can be found in the food & beverage and pharmaceutical industry. LAPP part number 53806740.
Must purchase in increments of 5.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53806740 | SERIES SKINTOP® INOX |
| THREAD TYPE Metric | THREAD SIZE 16 | THREAD LENGTH (IN) 0.275 |
| THREAD LENGTH (MM) 6.985 | BODY MATERIAL Stainless steel | COLOR Metallic |
| CLAMPING RANGE (IN) 0.197 - 0.394 | CLAMPING RANGE (MM) 5 - 10 | OVERALL LENGTH (IN) 1.276 |
| BUSHING Silicone | WRENCHING FLATS (IN) 0.788 | DYNAMIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C |
| STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 IP69 | STANDARDS/APPROVALS UL Approved CE Approved |
| ADDITIONAL STANDARDS ATEX |
