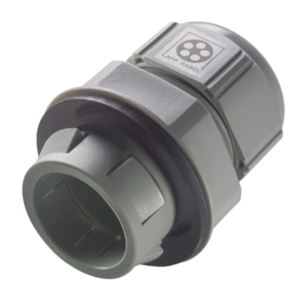

53112921 - LAPP SKINTOP® CLICK Strain Relief Cable Gland - M12 - Gray
53112921 - LAPP SKINTOP® CLICK Strain Relief Cable Gland - M12 - Gray
Part #: OLF53112921
Mfg #: 53112921
Manufacturer: LAPP
Mfg #: 53112921
Manufacturer: LAPP
In Stock
$3.06 / EA
LAPP SKINTOP® CLICK is an innovative cable insertion system that provides fast, highly flexible assembly. Easy snap-in-place installation results in fixed, centered, strain relief with maximum protection in seconds. Mounting hole is based on metric thread. LAPP part number 53112921.
Must purchase in increments of 50.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112921 | SERIES SKINTOP® CLICK |
| THREAD TYPE Metric | THREAD SIZE 12 | THREAD LENGTH (IN) 0.315 |
| THREAD LENGTH (MM) 8.001 | BODY MATERIAL Polyamide | COLOR Gray |
| CLAMPING RANGE (IN) 0.138 - 0.276 | CLAMPING RANGE (MM) 3.5 - 7 | OVERALL LENGTH (IN) 1.576 |
| BUSHING Special Elastomer | LOCKNUT Not Included | WRENCHING FLATS (IN) 0.591 |
| DYNAMIC TEMPERATURE RATING -4°F to +212°F -20°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 |
| STANDARDS/APPROVALS UL Approved CE Approved |
