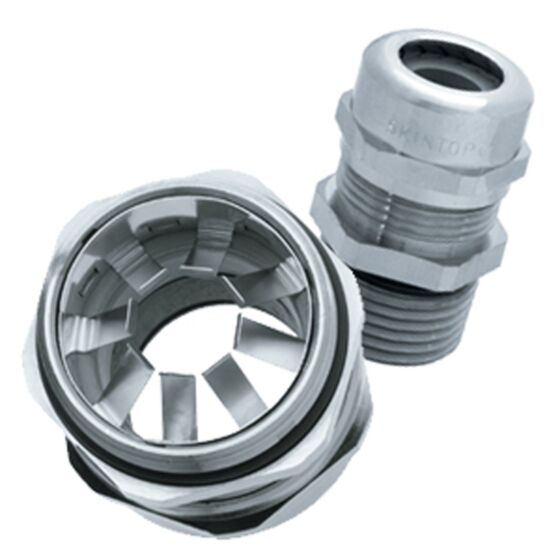

53112920 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 1/2 NPT - Metallic
53112920 - LAPP SKINTOP® MS-SC Strain Relief Cable Gland - 1/2 NPT - Metallic
$18.74 / EA
The LAPP SKINTOP® MS-SC NPT is uniquely designed to address EMI concerns with its simplified grounding feature. In a few easy steps the cable is grounded, strain relieved, and sealed from moisture and dust in accordance with IP68. The cable glands' contact springs establish a continuous electrical path from the shield of the cable to the equipment ground, creating a secure shield connection.
Must purchase in increments of 50.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112920 | SERIES SKINTOP® MS-SC |
| THREAD TYPE NPT | THREAD SIZE 1/2 | THREAD LENGTH (IN) 0.591 |
| BODY MATERIAL Nickel-plated brass | COLOR Metallic | CLAMPING RANGE (IN) 0.276 - 0.512 |
| CLAMPING RANGE (MM) 7 - 13 | OVERALL LENGTH (IN) 1.674 | BUSHING CR |
| INSERT Polyamide | LOCKNUT Not Included | WRENCHING FLATS (IN) 0.945 |
| DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 |
| STANDARDS/APPROVALS UL Approved |
