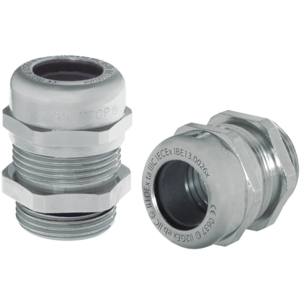

53112740 - LAPP SKINTOP® MS-M ATEX Strain Relief Cable Gland - M32 x 1.5
53112740 - LAPP SKINTOP® MS-M ATEX Strain Relief Cable Gland - M32 x 1.5
$38.24 / EA
LAPP SKINTOP® MS-M ATEX were developed for use in areas with risk of explosion and for cables used with fail-safe circuits in housings and devices which require class "e" security. They are recommended for use in the chemical and petrochemical industry, mobile offshore, and marine applications. LAPP part number 53112740.
Must purchase in increments of 25.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112740 | SERIES SKINTOP® MS-M ATEX |
| THREAD TYPE Metric | THREAD SIZE 32 | THREAD LENGTH (IN) 0.354 |
| THREAD LENGTH (MM) 8.9916 | BODY MATERIAL Nickel-plated brass | COLOR Metallic |
| CLAMPING RANGE (IN) 0.433 - 0.827 | CLAMPING RANGE (MM) 11 - 21 | OVERALL LENGTH (IN) 1.792 |
| BUSHING CR | LOCKNUT Not Included | WRENCHING FLATS (IN) 1.418 |
| DYNAMIC TEMPERATURE RATING -22°F to +194°F -30°C to +90°C | STATIC TEMPERATURE RATING -22°F to +194°F -30°C to +90°C | IP RATING IP68 IP69 |
| STANDARDS/APPROVALS UL Approved CE Approved | ADDITIONAL STANDARDS ATEX |
