53112681 - LAPP SKINTOP® MS-M BRUSH Strain Relief Cable Gland - 63 Metric - Plus - Metallic
53112681 - LAPP SKINTOP® MS-M BRUSH Strain Relief Cable Gland - 63 Metric - Plus - Metallic
Part #: OLF53112681
Mfg #: 53112681
Manufacturer: LAPP
Mfg #: 53112681
Manufacturer: LAPP
In Stock
$286.76 / EA

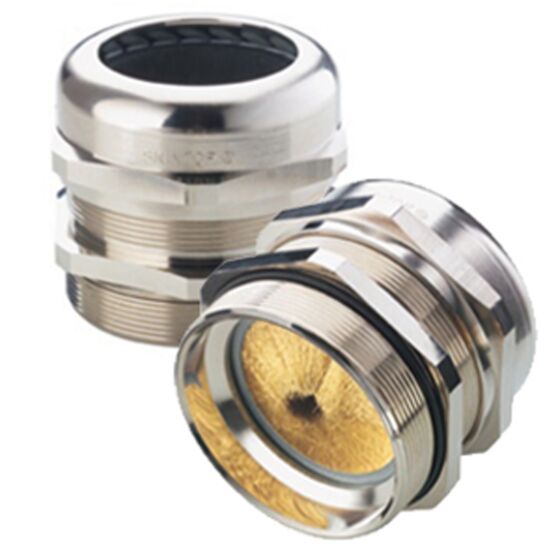

The LAPP SKINTOP® MS-NPT provides centered, fixed strain relief with a liquid-tight and dust-proof seal, all in one step. Simply insert the cable, push the braid shield under the innovative EMC brush, tighten the cap, and the connection is made. Plus sizes offer extra large clamping range.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112681 | SERIES SKINTOP® MS-M BRUSH |
| THREAD TYPE Metric | THREAD SIZE 63 | THREAD LENGTH (IN) 0.591 |
| BODY MATERIAL Nickel-plated brass | COLOR Metallic | CLAMPING RANGE (IN) 1.733 - 2.167 |
| CLAMPING RANGE (MM) 44 - 55 | OVERALL LENGTH (IN) 2.719 | BUSHING Special Elastomer |
| INSERT Polyamide | LOCKNUT Not Included | WRENCHING FLATS (IN) 2.955 |
| DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 |
| STANDARDS/APPROVALS UL Approved |
