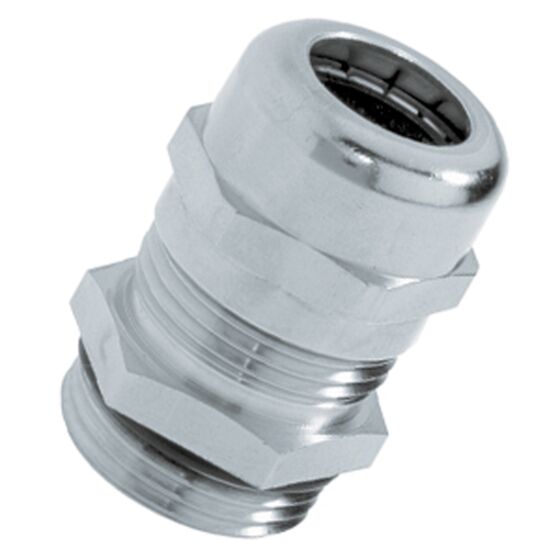

53112060 - LAPP SKINTOP® MS-M Strain Relief Cable Gland - 50 Metric - Metallic
53112060 - LAPP SKINTOP® MS-M Strain Relief Cable Gland - 50 Metric - Metallic
$64.05 / EA
LAPP SKINTOP® MS-M is a superior quality, liquid-tight metallic cable gland intended for applications where ruggedness and durability are required. These cable glands are suitable for a wide range of applications, from manufacturing machinery to measurement and control equipment, including automation and robotics.
Must purchase in increments of 5.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112060 | SERIES SKINTOP® MS-M |
| THREAD TYPE Metric | THREAD SIZE 50 | THREAD LENGTH (IN) 0.394 |
| BODY MATERIAL Nickel-plated brass | COLOR Metallic | CLAMPING RANGE (IN) 1.063 - 1.379 |
| CLAMPING RANGE (MM) 27 - 35 | OVERALL LENGTH (IN) 2.048 | BUSHING CR |
| INSERT Polyamide | LOCKNUT Not Included | WRENCHING FLATS (IN) 2.127 |
| DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 IP69 |
| STANDARDS/APPROVALS UL Approved |
