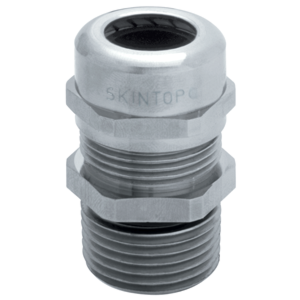

53112024 - LAPP SKINTOP® MS-NPT Strain Relief Cable Gland - NPT 1/2"
53112024 - LAPP SKINTOP® MS-NPT Strain Relief Cable Gland - NPT 1/2"
$21.16 / EA
LAPP SKINTOP® MS-NPT is a superior quality, liquid-tight, metallic cable gland intended for applications where ruggedness and durability are required. LAPP part number 53112024.
Must purchase in increments of 50.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112024 | SERIES SKINTOP® MS-NPT |
| THREAD TYPE NPT | THREAD SIZE 1/2 | THREAD LENGTH (IN) 0.591 |
| THREAD LENGTH (MM) 15.0114 | BODY MATERIAL Nickel-plated brass | COLOR Metallic |
| CLAMPING RANGE (IN) 0.275 - 0.512 | CLAMPING RANGE (MM) 7 - 13 | OVERALL LENGTH (IN) 1.674 |
| BUSHING CR | LOCKNUT Not Included | WRENCHING FLATS (IN) 0.945 |
| DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 |
| STANDARDS/APPROVALS UL Approved CE Approved |
