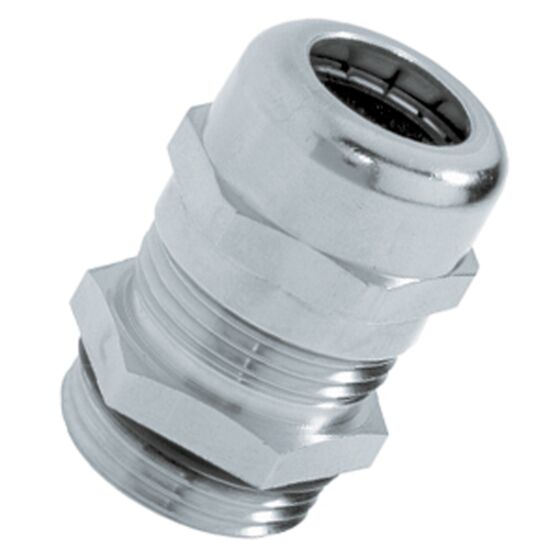

53112020 - LAPP SKINTOP® MS-M Strain Relief Cable Gland - 20 Metric - Metallic
53112020 - LAPP SKINTOP® MS-M Strain Relief Cable Gland - 20 Metric - Metallic
$11.82 / EA
LAPP SKINTOP® MS-M is a superior quality, liquid-tight metallic cable gland intended for applications where ruggedness and durability are required. These cable glands are suitable for a wide range of applications, from manufacturing machinery to measurement and control equipment, including automation and robotics.
Must purchase in increments of 50.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53112020 | SERIES SKINTOP® MS-M |
| THREAD TYPE Metric | THREAD SIZE 20 | THREAD LENGTH (IN) 0.315 |
| BODY MATERIAL Nickel-plated brass | COLOR Metallic | CLAMPING RANGE (IN) 0.276 - 0.512 |
| CLAMPING RANGE (MM) 7 - 13 | OVERALL LENGTH (IN) 1.398 | BUSHING CR |
| INSERT Polyamide | LOCKNUT Not Included | WRENCHING FLATS (IN) 0.945 |
| DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C | IP RATING IP68 IP69 |
| STANDARDS/APPROVALS UL Approved |
