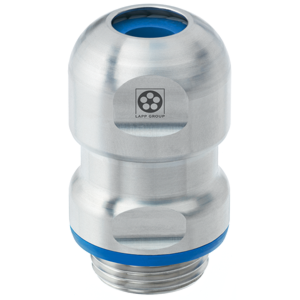

53105230 - LAPP SKINTOP® HYGIENIC-R Strain Relief Cable Gland - M25 x 1.5
53105230 - LAPP SKINTOP® HYGIENIC-R Strain Relief Cable Gland - M25 x 1.5
$203.44 / EA
LAPP SKINTOP® HYGIENIC-R is a stainless steel cable gland with reducer bushing that uses FDA-approved material and is designed with special features which prevent micro-organisms and bacteria from sticking to the surface. It has an IP68/69 rating and withstands high pressure and high temperature washdowns. LAPP part number 53105230.
Must purchase in increments of 5.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 53105230 | SERIES SKINTOP® HYGIENIC-R |
| THREAD TYPE Metric | THREAD SIZE 25 | THREAD LENGTH (IN) 0.315 |
| THREAD LENGTH (MM) 8.001 | BODY MATERIAL Stainless steel | COLOR Metallic |
| CLAMPING RANGE (IN) 0.355 - 0.493 | CLAMPING RANGE (MM) 9 - 12.5 | OVERALL LENGTH (IN) 1.927 |
| BUSHING Special Elastomer | WRENCHING FLATS (IN) 1.143 | DYNAMIC TEMPERATURE RATING -4°F to +212°F -20°C to +100°C |
| STATIC TEMPERATURE RATING -4°F to +212°F -20°C to +100°C | IP RATING IP68 IP69 | STANDARDS/APPROVALS UL Approved CE Approved |
| ADDITIONAL STANDARDS ATEX |
