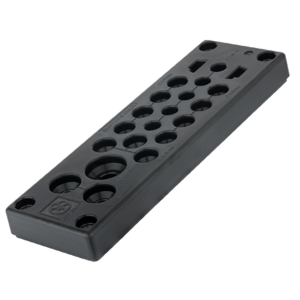

52220073 - LAPP SKINTOP® MULTI Multi-Cable Bushing System - Version 2 - 21 Bushings - Black
52220073 - LAPP SKINTOP® MULTI Multi-Cable Bushing System - Version 2 - 21 Bushings - Black
$88.72 / EA
LAPP's SKINTOP® MULTI provides IP68 protection and a frameless, low-profile design. The adhesive effect of the gel on the back side of the bushing system allows for quick positioning during assembly.
- Easy assembly with high packing density
- Optimum strain relief of the entire cable bundle
- Large,variable clamping range: 4 mm and AS-i bus entry system due to gel technology with innovative membrane technology
- UV, ozone, and oil resistant
- Fits 24-pole connector mounting cutouts (36 x 112mm)
- LAPP part number 52220073
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 52220073 | SERIES SKINTOP® MULTI |
| BODY MATERIAL Polycarbonate | COLOR Black | LOCKNUT Not Included |
| SEALING MATERIAL Gel | NUMBER OF CABLE HOLES 21 | IP RATING IP68 |
| ENVIRONMENTAL UV Resistant|Ozone Resistant|Oil Resistant |
