52110028 - LAPP SKINTOP® MS-M ATEX BRUSH Strain Relief Cable Gland - M63 x 1.5, plus
52110028 - LAPP SKINTOP® MS-M ATEX BRUSH Strain Relief Cable Gland - M63 x 1.5, plus
$358.43 / EA

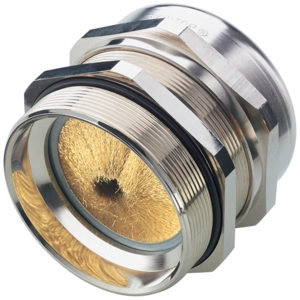

LAPP SKINTOP® MS-M ATEX BRUSH was developed for safe use in areas with risk of explosion and for cables used with fail-safe circuits in housings and devices which require class “e” security. Simply insert the cable, push the braid shield under the innovative EMC brush, tighten the cap, and the connection is made. LAPP part number 52110028.
Must purchase in increments of 1.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 52110028 | SERIES SKINTOP® MS-M ATEX BRUSH |
| THREAD TYPE Metric | THREAD SIZE 63 | THREAD LENGTH (IN) 0.591 |
| THREAD LENGTH (MM) 15.0114 | BODY MATERIAL Nickel-plated brass | COLOR Metallic |
| CLAMPING RANGE (IN) 1.734 - 2.167 | CLAMPING RANGE (MM) 44 - 55 | BUSHING Special Elastomer |
| LOCKNUT Not Included | WRENCHING FLATS (IN) 2.955 | DYNAMIC TEMPERATURE RATING -22°F to +194°F -30°C to +90°C |
| STATIC TEMPERATURE RATING -22°F to +194°F -30°C to +90°C | IP RATING IP68 | STANDARDS/APPROVALS CE Approved |
| ADDITIONAL STANDARDS ATEX |
