52105290 - LAPP SKINTOP® SKINDICHT® SHV-M - M16 Outer PG 9 Inner Thread 0.267 Inch Clamp - Metallic
52105290 - LAPP SKINTOP® SKINDICHT® SHV-M - M16 Outer PG 9 Inner Thread 0.267 Inch Clamp - Metallic
$17.34 / EA

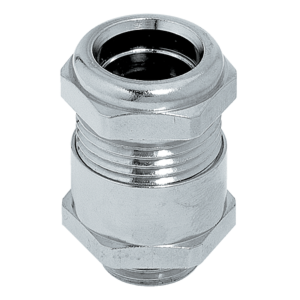

LAPP's SKINTOP® SKINDICHT® SHV-M is a M16 outer, PG inner thread, nickel-plated brass strain relief with sealing capability down to 300ft (10 bar) of water pressure. This cable gland provides superb compression strength and strain relief and is ideal for underwater applications where water a pressure-tight seal is required. LAPP part number number 52105290.
Must purchase in increments of 50.
Specifications
Download Spec Sheet| MANUFACTURER LAPP | MANUFACTURER PART NUMBER 52105290 | SERIES SKINTOP® SKINDICHT SHV-M |
| THREAD TYPE Metric | THREAD SIZE 16 | THREAD LENGTH (IN) 0.197 |
| BODY MATERIAL Nickel-plated brass | CLAMPING RANGE (IN) 0.177 - 0.267 | OVERALL LENGTH (IN) 1.044 |
| BUSHING CR (NBR) | LOCKNUT Not Included | O-RING NBR |
| IP RATING IP68 | STANDARDS/APPROVALS CE Approved | TEMPERATURE RANGE -4°F to +176°F -20°C to +80°C |
