52015740 - LAPP SKINTOP® MS Strain Relief Cable Gland - PG 16
Mfg #: 52015740
Manufacturer: LAPP
In Stock

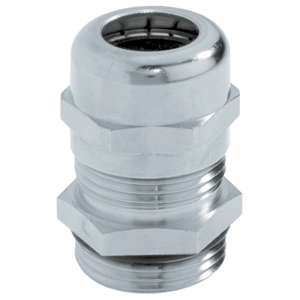

LAPP SKINTOP® MS is a superior quality, liquid-tight, metallic cable gland intended for applications where ruggedness and durability are required. These cable glands are suitable for a wide range of applications, from manufacturing machinery to measurement and control equipment, including automation and robotics. LAPP part number 52015740.
Specifications
Download Spec SheetMANUFACTURER LAPP | MANUFACTURER PART NUMBER 52015740 | AVAILABILITY In Stock |
SERIES SKINTOP® MS | THREAD TYPE PG | THREAD SIZE 16 |
THREAD LENGTH (IN) 0.256 | THREAD LENGTH (MM) 6.5024 | BODY MATERIAL Nickel-plated brass |
COLOR Metallic | CLAMPING RANGE (IN) 0.315 - 0.551 | CLAMPING RANGE (MM) 8 - 14 |
OVERALL LENGTH (IN) 1.379 | BUSHING CR | LOCKNUT Not Included |
WRENCHING FLATS (IN) 0.945 | DYNAMIC TEMPERATURE RATING -13°F to +212°F -25°C to +100°C | STATIC TEMPERATURE RATING -40°F to +212°F -40°C to +100°C |
IP RATING IP68 | STANDARDS/APPROVALS CE Approved |
