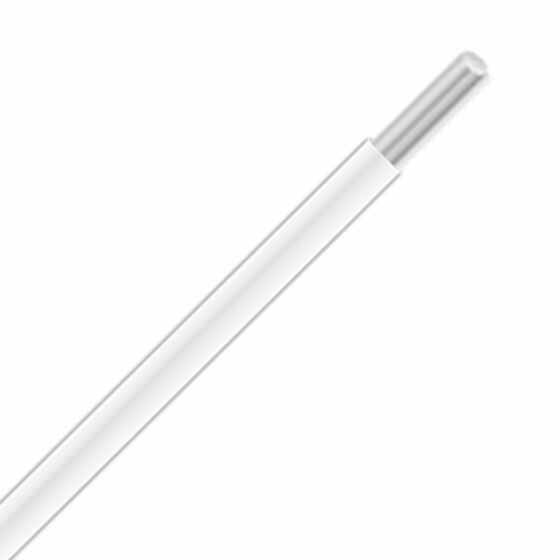

422001 WH005 - Alpha Wire UL 1061 PVC Hook-Up/Lead Wire - 20 AWG - Solid Conductor - Tinned Copper - 300V - White - 100ft
422001 WH005 - Alpha Wire UL 1061 PVC Hook-Up/Lead Wire - 20 AWG - Solid Conductor - Tinned Copper - 300V - White - 100ft
Part #: ALP422001-WH005
Mfg #: 422001 WH005
Manufacturer: Alpha Wire
Mfg #: 422001 WH005
Manufacturer: Alpha Wire
Contact 800-633-6339 for Availability
$50.6800 / 100 FT
Alpha Wire's UL 1061 Hook-up / Lead Wire features a general purpose PVC insulation with good abrasion and excellent flame resistance. 20 AWG, Solid Conductor, Tinned Copper, 300V, White, 100ft, 422001 WH005
Available to buy in increments of 100.
Specifications
Download Spec Sheet| MANUFACTURER Alpha Wire | MANUFACTURER PART NUMBER 422001 WH005 | AVAILABILITY Contact 800-633-6339 for Availability |
| UL STYLE / STANDARD UL 1061 | AWG/GAUGE 20 | CONDUCTOR STRANDING Solid |
| CONDUCTOR MATERIAL Tinned copper | JACKET COLOR White | INSULATION MATERIAL PVC |
| NOMINAL OD (IN) 0.052 | INSULATION THICKNESS (IN) 0.01 | TEMPERATURE 14°F to +176°F -10°C to +80°C |
| VOLTAGE 300V | STANDARDS/APPROVALS UL Approved CSA Approved | ADDITIONAL STANDARDS UL AWM|UL VW-1 |
| CSA TYPE CSA AWM I A/B CSA FT 1 |
